Pipe Prefabrication A8 Automatic Welding Machine - China
price: contact company for price

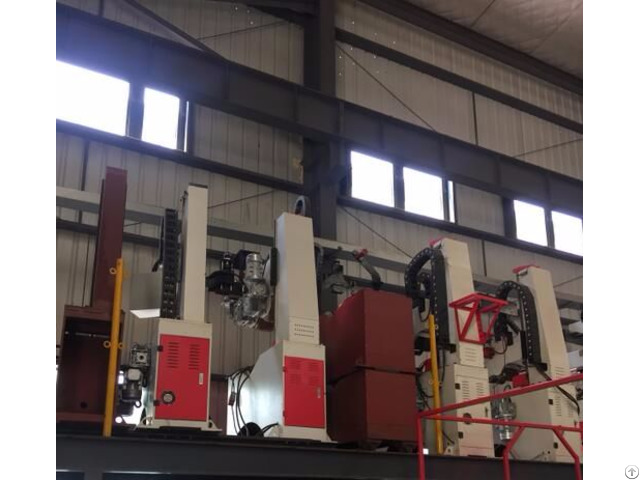

Pipe Fabrication Automatic Welding Machine (FCAW/GMAW)
Model: PPAWM-16Aa/24Aa/32Aa
Performance features
On-line Performance: Excellent (Designed completely as per the on-line equipment of the production line)
Application: extremely broad (pipe and cover welding of various structures in various industries).
Welding Capacity: Excellent (250-350 inch/day, which is 4 times higher than the manual welding)
Operability: Good (applicable and easy to operate even if you are a new user)
Surface finishing: Excellent (the welding gun will be positioned in the optimum position always)
Welding qualification rate: 98% min (without re-working for the skilled operator).
Driving Reliability: Good (driven by frictional force, however, it is required to set essential balance weight to offset large bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the driving).
Technical parameters
Pipe diameter applicable: DN50-400(φ60-426)/DN50 600(φ60~610)/DN200-80 0(φ219-813)
Pipe wall thickness applicable: 3~30MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
Welding line applicable: various butt welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).
Driving System: driven by two line rubber roller and reducer
Clamping system: clamping arm move up & down electrically and clamps by screw with telescope boom.
Bracket System: Separate type of trolley matching for welding equipments, which may be adjusted along the track according to the length of the pipe
Counterweight System: no Counterweight
Speed regulation Mode: VF stepless speed control system
Adjustment Mode: electric cross regulator
Oscillating system: a product of our patented technology, step motor driving and digital displaying oscillating width adjusting .
Control system: a product of our patented technology, PLC control
Welding procedure: FCAW/GMAW (can be do root pass, filling, & final welding)
Welding Power: our OEM products which are famous in China (or as per customers’ demands)
Company Contact:
- Posted By: Shanghai Qianshan Piping Technology Co.,Ltd
- Phone: 8615221220112
- Address: No.866, Xinyan Road, Maogang Town, Songjiang District, Shanghai , Shanghai , China
- Email:
- Website: http://www.qiansh.com/
Published date: August 11, 2016
- Business Description: QSPT is the leading manufacturer and the most professional & innovation ability provider of integrated / total solutions for automation piping spool prefabrication, also is the unique provider of professional Piping Plant Design Software & Intelligent Management Software System and Piping Equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments, as well as offer the commercialize piping fabrication service, training & guidence management service for automation pipe spool fabrication engineering project of Oil & Gas, Petrochemical, Petroleum, Chemical Industry, Power Plant, Offshore & Marine Engineering, Shipbuilding Industry, Aerospace, Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework Construction and install Fields etc.
