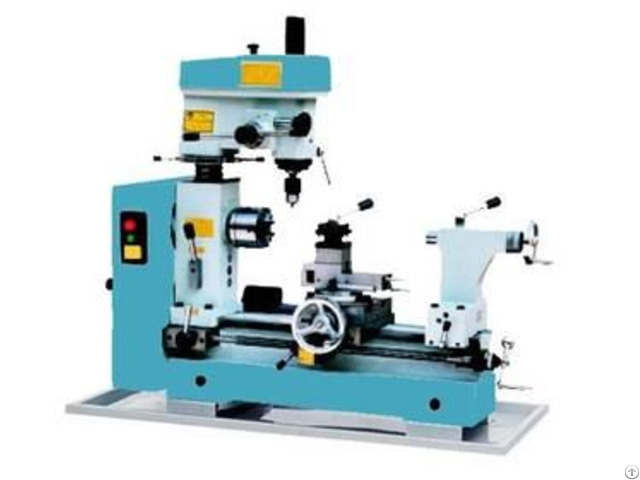

Multi Purpose Machine Hq500 - China
price: 1100.00 Dollar US$
ITEM HQ500 HQ800
Swing over bed φ420mm
Distance between centers 500mm 800mm
Max.
longitudinal travel 440mm 740mm
Max.
cross travel 200mm
Taper of spindle M.T.4
Spindle hole φ28mm
Step of spindle speed 7
Range of spindle speed 160-1360r.p.m
Barrel travel 70mm
Taper of center M.T.3
Metric thread range 0.2-6mm
Inch thread range 4-120T.P.I
Longitudinal range of automatic feeding 0.05-0.35mm/0.002-0.014
Cross range of automatic feeding 0.05-0.35mm/0.002-0.014
Max.
drilling capacity φ22mm
Worktable size (L*W) 475×160mm²
Max.
end mill φ28mm
Max.
face mill φ80mm
Distance between spindle center and column 285mm
Distance between spindle and worktable 306mm
Headstock travel of up and down 110mm
Spindle taper M.T.3
Step of spindle speed 16
Range of spindle speed 120-3000r.p.m
Swivel degree of headstock ±360°
Motor power 0.55Kw/0.55Kw
Voltage/Frequency As customers’ requirement
Packing size 1130×580×1100mm(HQ800: 1 430×580×1100mm)
N.
W/G .
W 245kg/280kg(HQ800: 275kg/3 25kg)
Loading amount 40pcs/20’container(800: 32pcs/20’container
Company Contact:
- Posted By: CHIZHOU HJ MACHINERY CO.,LTD
- Phone: 86 566 3390679
- Address: Yongsheng , Chizhou , Anhui , China
- Email:
Published date: August 25, 2016
- Business Description: We have exporting experience for more than 15 years.
Our factories are keeping develop and produce innovative high-tech machine tools for metalworking machines and woodworking machines.
Our product rang is Multi-Purpose Machine, Bench Lathe, Milling & Drilling Machine, Drilling machine, Band saw, Woodworking machine series, VMC and other CNC machines.
