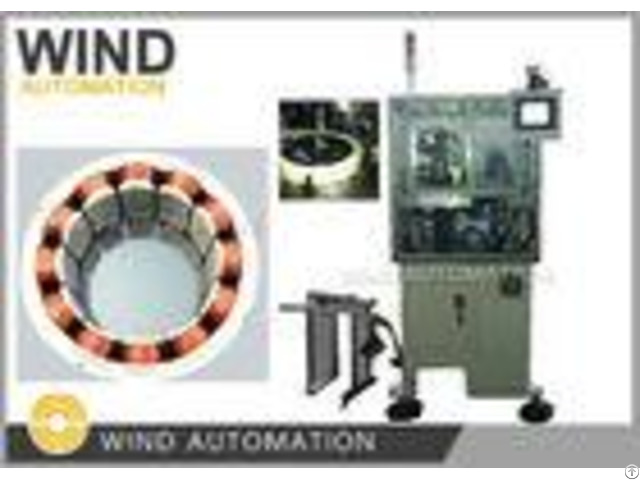

Three Needles 12 Poles Bldc Winding Machine Stator Inner Winder - China

Three Needles 12Poles BLDC Motor Stator Inner Winding Machine Application: Air conditioning compressor, Refrigerator compressor 6poles, 9 poles, 12 poles or 18polesThree phaseBrushless Motor Stator3PhaseABCwinding way same.

Advantages: - - - - Mechanical movement of nozzle as below picture showed | Nozzle driven by cam device which winding the turns and then move wire diameter distance to do the arraying to achieve high slot filling rate, Stator is stationary during the winding which don't hit the nozzle, | Wire Gauge | Wide copper wire adaption range from0.08~1.2mm (AWG17~AWG39) especially suitable for winding thick wire diameter around 0.8mm (AWG20) | One station | Three nozzles winding at same time act as a three station stator winder and at same time one station stator winder don't have synchronization issue.

| - - - - Stator Needle Winding Machine WIND-3A-TSMTheory: Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles stator with 6poles, 9 poles, 12 poles electric motors which is multiples of 3 - Stator winding machine WIND-3A-TSM's spindle winding track is in square shape as above photo, needle moves only vertically driven by winding spindle, and for achieve better slot filling rate for the small slot width stator with high slot full rate of motor, nozzle moves one wire size horizontally after one turn winding for arraying, needle go to next wire size and till the end of slot width it move back and array in a different direction, stators are placed on rotating fixturefor indexing, stator is stationary during the winding, Winding machine does wires arraying and winding at same time automatically.

It is the best sold needle winding machine during the stator winders WIND-TSM Series for BLDC compressor stator motor mass production Parameter: Wire diameter: 0.08~1.2mm (AWG17~AWG39) Stator ID: 15~65mm Core length: 7-110mm Turns No.

0-99999 Operation option: stepping/Auto Stator poles: 6 poles, 9 poles, 12 poles, 18poles (Customized) Air pressure: 5~7kg/square centi-meter Power: 2KW, AC220V 50/60Hz Weight: about 450kgs Dimension: 1600(L)x1100(W)x1400(H)mm The automatic brushless stator winding machine series WIND-TSM is suitable for the winding of various types of brushless motor coils.

The enameled wire is directly wound on the coil core.

Compared with the traditional method of stator coil winding and windingsembedding method, it saves the cost of the enameled wire and increases the number of coils (related to electric motor slot filling rate).

The magnetic flux increases the power of the motor.

This machine WIND-TSM series can automatically complete the winding, indexing, arraying, cutting and other processes.

The operator only needs to take the work of picking and placing the stator, which reduces the labor intensity of the operator and achieves automation.

In addition, the machine has a significant functional feature.

The copper wire nozzles are moving according to the setting parameter, so that the wound wire package is compact, neat and nice looking.

- - - - Parts list WIND-3A-TSM | | | Name | Spec.

| Q'ty | | Parts | | | | | 1 | Spindle belt | HTD8M-776 | 1pc | | 2 | Arraying belt | HTD8M-624 | 1pc | | 3 | Belt | HTD5M-825 | 1pc | | 4 | Fuse | RT18-32 2A | 2pcs | | 5 | Fuse | RT18-32 10A | 2pcs | | 6 | Magnetic switch | AL-11RL-02 | 1pc | | 8 | Ceramic wheel | 4 | 1pc | | | | | | | Tools: | | | | | 1 | Allen wrench | 8pcs | 1Set | | 2 | Open end wrench | 13-16mm | 1pc | | 3 | Word screwdriver | 4inches | 1pc | | 4 | Phillips screwdriver | 4inches | 1pc | | 5 | Wrench | 8pcs | 1Set | | 6 | Tool box | | 1pc | | 7 | Diagonal pliers | | 1pc | | | | | | | | | | | | Custom part | | | | | 1 | Nozzle | | 1pc | | - - - - Please click below picture to view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.

com Skype: motor.

machinery Mobile: +86-17721374887
