  • Bldc Motor Stator Coil Winding Machine Needle Type Three Phase - China

    price: check with company for price

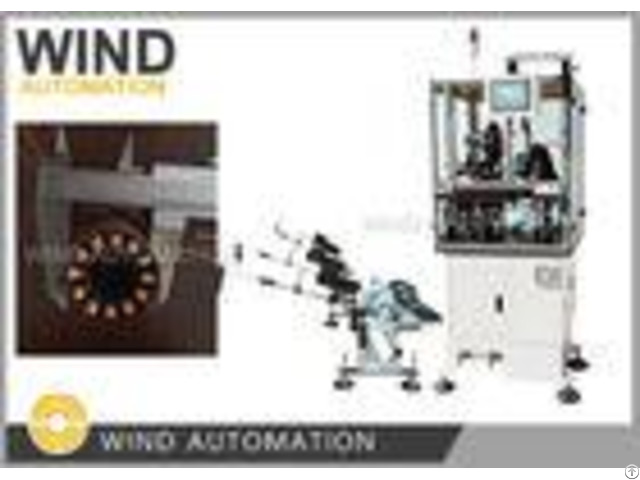

    Three Phase BLDC Motor Stator Coil Winding Machine Needle Type Not Flyer Winder WIND-3A-TSM Application: Needle winding BLDC stators of Three Phase Motor likeSewing Machine, Air conditioning compressor, Refrigerator compressor, water pump automotive application, fuel pump motor with 6poles, 9 poles, 12 poles or 18poles Advantages: 3 needles wind 3slots at same time, wider can finish the winding in3 times for 9poles BLDC stator Can wind 6, 9, 12 poles stators which isMultiples of 3slots Winding speed can be setted per different wire diameter from 0.08mm to 1.2mm, and heavy or light weight stators, big or small stack height, have good apation with no limination Feature: Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles 3phase stator Its winding track is in square shape, It does wires winding and arraying at same time and automatically.

    The slots needle winding, arraying, indexing, place bridge wire, cut wires are fully automatically.

    Parameter: Wire diameter: 0.08~1.2mm (AWG17~AWG39) Stator ID: 15~65mm Core length: 7-110mm Turns No.

    0-99999 Operation option: stepping/Auto Stator poles: 6 poles, 9 poles, 12 poles, 18poles (Customized) Air pressure: 5~7kg/square centi-meter Power: 2KW, AC220V 50/60Hz Weight: about 450kgs Dimension: 1600(L)x1100(W)x1400(H)mm The BLDC stator winding machine WIND-3A-TSM use needle to wind the coils to stator directly, unlike some external stator or some universal DC armature flyer winding machine, the wire move in the slot only, so for needle winding machine, there must be enough space for the movement of the needle, If you need to purchase the machine, you need to tell the [machine supplier ]your stator drawing and height, including the important slot width size for checking enough space for the movement of needles.

    WIND-3A-TSM needle winder does 3 windings at one time Some BLDC stator manufacturers is considering using skew slot in their BLDC motor, as skew design might acquire better slot filling rate and magnetic flux, till now even some Italy machinery manufacturer can not produce this kind of machine.

    So if you consider using skew, you may have to do the coil winding manually or select a high cost coil winding machine.

    Question and Answer: 1 - Which type of stator needle winding shall we select for our stator in attached drawing? The winding machine WIND-3A-TSM with winding arrraying indexing servo device and angle swing cam device is very suitable for winding your stator metioned in drawing, it is very stable in winding big and small wire, heave or light BLDC motor compressor stators, 2 - Can you also estimate the winding period of our design, how many stators can we produce in one hour? Per your winding data Number of turns 27, wire diameter 0.8mm, the winding speed we suggest is300RPM, and it take about 1mintutes to get 1pc wound stator, In one hour you can get more than 60pcs 3 - What's the material list we shall provide for machine trail? Below samples are needed for machine manufacturing and commissioning, 1 - Stator stack 5pcs without winding 2 - Wound stator 1pc 3 - Copper wire 1 roll enough for winding 15pcs stators Please click below picture to view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.

    com Skype: motor.

    machinery Mobile: +86-17721374887
