Automatic Coil Making Machine Ac Induction Motor Pump Stator - China
price: check with company for price

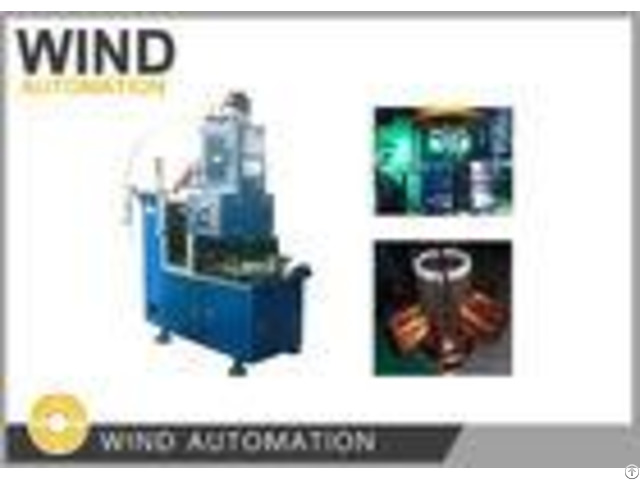

AC Induction Motor Pump Stator Automatic Coil Winding Making Machine With Servo System WIND-100-VM Application: Winding Motors of vending machines, wheelchairs, medical beds, treadmills, pump, compressor and so on - - - - Winding head | 1winding head, 2 turnable station, fully servo system for coils winding | Min.
Wire Gauge | Copper wire 0.1mm, aluminum wire should be bigger as aluminum wire is easy broken | Main winding, aux winding | Changing tooling is easy for AC motor main winding and aux winding different winding way | - - - - Advantages: 1 - Save copper wire and protect wire from damaging comparing to simple CNC winder 2 - Chinese Topmotor manufacturers use the machine over 5years, hadgood comments 3 - Save labor cost Specification: Wire diameter: 0.2~1.2mm Min stator ID: 40mm Max stator OD: 175mm Core length: 40-130mm Power: 380V, 50/60KW Weight: about 1100kgs Dimensions: 1900 (L)x850 (W)x3200(H)mm Motor winding machine manufacturer sample needed 1 - Stator stack samples each 5pcs 2 - Copper wire gauge each 1roll 3 - Stator lamination drawing and winding drawing Please click below pictureto view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.
com Skype: motor.
machinery Mobile: +86-17721374887
Company Contact:
- Posted By: Shanghai Wind Automation Equipment Co.,Ltd
- Phone: 86-21-58992293
- Address: No.4 Building , No.388, Kongjiang Road,Yangpu District,200093,Shanghai, China, Shanghai , Shanghai , China
- Email:
- Website: https://www.statorwindingmachine.com
Published date: April 24, 2018
- Business Description: Shanghai Wind Automation Equipment Co., Ltd supply motor automation solution for global motor manufacturers.
Through continuous innovation and participating in globalization, it has developed into a large enterprise that integrates R&D, production and sales to provide motor solutions for customers.
