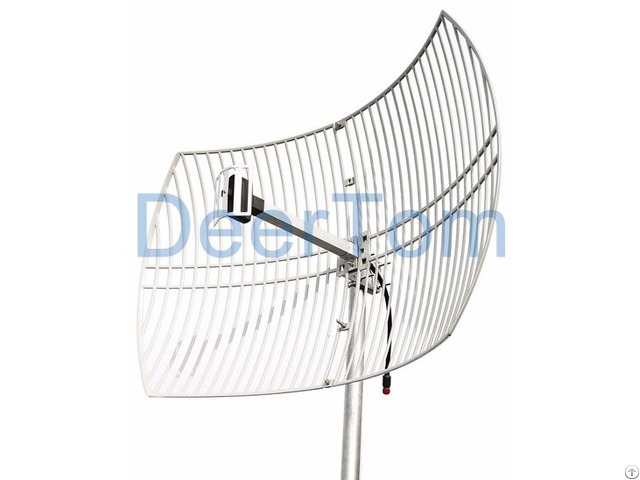

2400mhz 2 4ghz Wifi Wlan Outdoor Directional Grid Parabolic Antenna 24dbi High Gain Base Station - China

ELECTRICAL

Model DT-GPA2400-24

Frequency Range 2400-2500MHz

Gain 24dBi

Beamwidth H: 8°, E: 11°

VSWR ≤1.5

F/B Ratio ≥30dB

Polarization Vertical or Horizontal

Max Power 100W

Nominal Impedance 50Ω

Lightning Protection DC Ground

MECHANICAL

Connector N Female or customized

Antenna Dimension 600*900mm

Weight 5kg

Mounting Kits L Bracket & U Bolts

Working Temperature -40 ~ + 60℃

Pole Diameter Ф33～55mm

Rated Wind Velocity 60m/s
