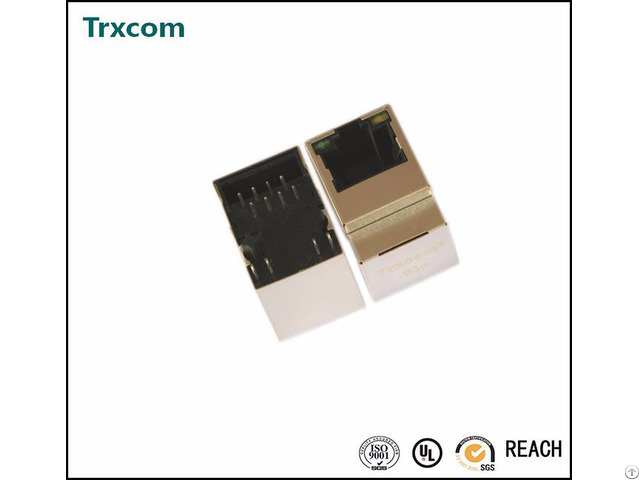

Trjd0011bgnl Vertical Side Entry Rj45 Connector - China

price: 0.68 Dollar US$

Vertical RJ45 Connector
With Led Non EMI-Finger
Length= 16.76mm
Led: Yellow & Green
Tab Up
Single Port
Pin Type: the solder
UL, RoHs, Reach, ISO9001:2008
Free sample available for approval

1. Designed to support application, such as SOHO(ADSL modems), Lan-on-motherboard(LOM), hub and switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing Material: Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min. In contact
4. Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
5. UL Certification: File Number E321120


Company Contact:


  • Phone: 8613554918626

  • Address: Minzhi Town, Longhua District, shenzhen, Guangdong , China

  • Email: Email


Published date: August 30, 2016 -

  • Business Description: The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
