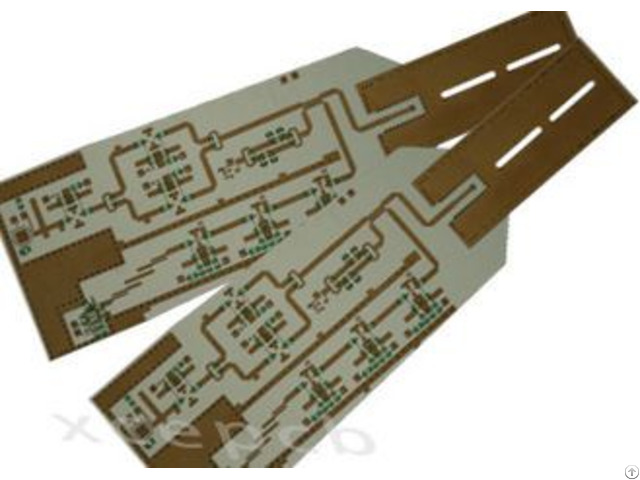

  • Laminate Rogers 4350b 2 Layer High Frequency Printed Pcb Board - China

    price: 0.50 Dollar US$

    Specification

    Rogers 4350B laminate in stock

    2 layer rogers pcb laminate

    Green solder mask, Model: XCER

    Copper THK: 1OZ

    Location: Shenzhen

    The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies.

    Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.

    Depending on various parameters, HF signals are reflected on circuit board, meaning that theimpedance (dynamic resistance) varies with respect to the sending component.

    To prevent such capacitive effects, all parameters must be exactly specified, and implemented with the highest level of process control.

    Critical for the impedances in high frequency circuit boards are principally the conductor trace geometry, the layer buildup, and the dielectric constant (er) of the materials used.

    For many applications, it is sufficient to use Rogers material with an appropriate layer buildup.

    In addition, we process high-frequency materials with improved dielectric properties.

    These have a very low loss factor, a low dielectric constant, and are primarily temperature and frequency independent.

    Additional favourable properties are high glass transition temperature, an excellent thermal durability, and very low hydrophilic rate.

    We use (among others) Rogers or PTFE materials (for example, Teflon from DuPont) for impedance controlled high frequency circuit boards.

    Sandwich buildups for material combinations are also possible.

    Which widely be used for :

    Automotive Antennas / RFID

    Back-up Aids

    Collision Avoidance

    Low-Noise Block Downconverter (LNB)

    Mobile Infrastructure Antennas

    Point to Point Digital Radios

    Power Amplifiers

    High Reliability

    Airborne Antenna Systems

    Broadcast Satellites

    Ground Based Radar Systems

    Millimeter Wave Applications

    Missile Guidance Systems

    High Speed Digital


    Company Contact:


    • Phone: 0755-26055813

    • Address: Xixiang , ShenZhen , GuangDong , China

    • Email: Email


    Published date: September 18, 2016

    • Business Description: Xinchenger Electronics co., Ltd established in 2009, we have committed ourselves to manufacturing various of hi-frequency microwave pcb and multi-layer board including fastest sample production.

      We continuously enaged in researching special and high precision printed circuit boards

      with strong production capability of 2 to 28 layers of highly precise impedence, multi-layer blind buried,

      multi-layer, high TG, copper substrate, mix-compression, ceramic substrate PCB.

      Our company's sufficient stocks as follow:

      ROGERS, TACONIC, ARLON, ISOLA, F4B, TP-2, FR-4.

      Following are some types introduction for Rigid PCB and High Frequency PCB:

      FR4 PCB(2layer, 4 layer, multilayer)

      Rogers (RO4003, RO4350, RO5880, RO3003, RO3010, RO3206, RO3035, RO6010)

      F4B high frequency pcb board

      Taconic(TLX-8, TLX-9, TLC-32, TLY-5, RF-60A, CER-10, RF-30, TLA-35)

      Arlon high frequency pcb board

      ISOLA high frequency pcb board

      At the same time, we also provide corresponding PCBA services as our customers design and requirement.

      Sincerely look forward to cooperating with you.

      If you have a product quotation, please do not hesitate to contact us, thank you!
