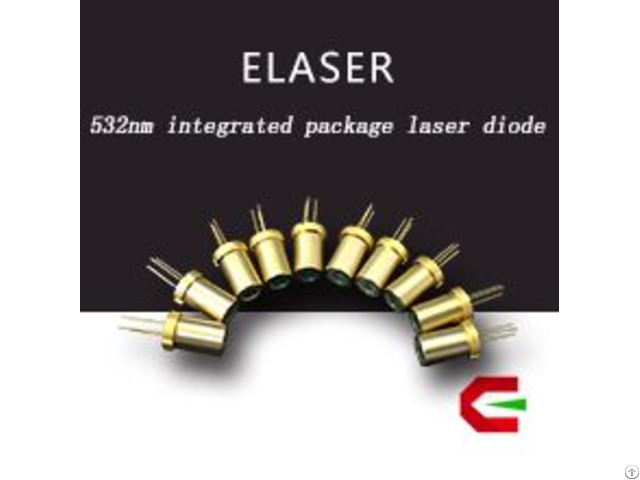

Minitype 20mw Copper To18 Integrated Package Laser Diode - China

price: 20.00 Dollar US$

Place of Origin: Liaoning, China (Mainland)
Brand Name: Elaser
Model Number: 532PD20
Type: Laser Diode
Package Type: Integrated Package
Wavelength: 532nm
Texture: Copper or Red Copper Housing
Package: TO-18
Operating Temperature: -20degree ~ +45degree
Emitting Color: Green
PD Feedback Control: Built-in
Theoretical Service Life: 10000 hours
Power: 20mW, 30mW, 50mW
A Tray Products G.W.: 132g

100 pieces/plastic tray and a carton for external packing
We can offer you one year warranty for defective products in unused condition on the premise of storing as required.

medical health care
stage lights
measuring tools and devices ( level ruler, locator, rangefinder, thermodetector, etc. )
aerospace electronics
military equipments
photographic equipments ( video camera, etc. )
civil electronics ( mouse, cellphone, projector, laser pointer, etc. )

Normal operation at -20degree
Modulating the signal to get a high power output
Small divergence angle
Low power consumption and energy saving
Narrowband spectrum---high color purity and strong monochromaticity

The items normally will be shipped out within 3 working days after the payment is confirmed by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.

We can ship to you by DHL/FedEx with the delivery time of 3-5 days.

We sincerely feel sorry for any accidents, delays or other issues caused by forwarder in some cases. Please forgive us that we could not bear the responsibility for any uncertainties by them.
The laser emitted from laser diode shooting at eyes directly must be avoided, which will hurt the eyes.
The output power can not be higher than specified parameter. The operating voltage should be controlled between 1.5V and 2.2V, otherwise it will accelerate component aging.
The output wavelength of laser diode is affected by operating current and heat dissipation. Good heat dissipation conditions should be maintained and the temperature of die during operation must be lowered. Assembling the radiator can avoid high temperature rise for laser diode in the work. The size of radiator will affect the start-up time of products.
This product is an electrostatic sensitive device which firstly requires human body electrostatic discharge when you install or operate it. You can wear anti-static bracelet to prevent static electricity.
Laser diode needs a suitable driving electrical source. Instantaneous reverse current can not exceed 25uA and reverse voltage should not exceed 3V, otherwise the devices will be damaged.
Please pay attention to the polarity and direction of pins to avoid damage when you use it.
The operating environment should be kept away from wet, dust and static electricity. If the product is not used for a long time, it is recommended to put it in the nitrogen cabinet, which can prevent oxidation and extend the service life.

Company Contact:

  • Phone: 15841524982

  • Address: Wenqing Road Building 70-42, Dandong, Liaoning , China

  • Email: Email

Published date: December 8, 2016 -

  • Business Description: Up to now, Elaser has successfully achieved automatic production of 532nm integrated package laser diode for 20mw, 30mw and 50mw. It also plans to develop 100mw, 500mw and 1W, providing high-quality products and services in 532nm lasers application field globally.
