Maxphotonics Fiber Laser Module 20w 30w For Non Metallic Materials - China

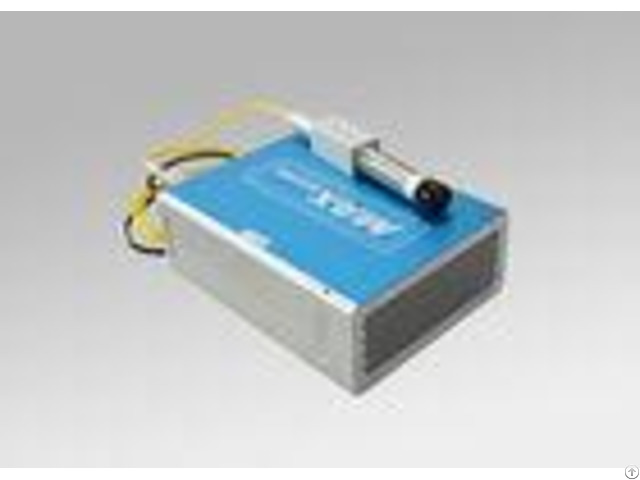

Fiber Laser Source Maxphotonics Fiber Llaser Module 20w 30w 50w Q-Switched Pulsed Fiber Laser (MFP5W-50W) Series are maintenance-free fiber lasers based on the Q-switched technology and MOPFA.

These lasers deliver light centered at 1064nm and guided to the work piece via a flexible metal-sheathed fiber cable.

It provides a set of pulse durations, repetition rates and peak powers.

The optical head may be equipped with an opto-isolator, that makes it possible to mark directly on non-metallic materials (plastic, wood, paper, etc.

) and some metal with low reflectivity.

Main Feature: 1 - Short turning on time, short pulse, high peak power, wide repetitive frequency range.

2 - There is no leak when the lasers are switched off.

3 - There is no shadow and Virtual circuit when process the special materials.

4 - Anti-high-reflection function, could do machining on the materials of gold, silver, aluminium, copper etc.

5 - Copact design.

6 - High reliability, long lifetime.

7 - Universal 25 pins interface.

8 - 3D outward design.

- - - - Optical Characteristic Parameters | No.

| Characteristics | 1Test conditions | Min.

| Nom.

| Max.

| Unit | 1 | Mode | Pulse | 2 | Polarization | Random | 3 | Beam Quality M2 | Pout=Pnom | 1.1 | 1.3 | 1.6 | | 4 | Center Wavelength | Pout=Pnom | 1055 | 1064 | 1070 | nm | 5 | Spectrum Width(3dB) | Pout=Pnom | | 5 | 10 | nm | 6 | Average Optical Power(Pnom) | MFP-5W | 4.5 | 5 | 5.5 | W | MFP-10W | 9.5 | 10 | 10.5 | MFP-20W | 19.5 | 20 | 20.5 | MFP-30W | 29.5 | 30 | 30.5 | MFP-50W | 49 | 50 | 51 | 7 | Power Range | | 10 | | 100 | % | 8 | Single Pule Energy | MFP-5W | | 0.45 | | mj | MFP-10W | | 0.56 | | MFP-20W | | 0.67 | | MFP-30W | | 1 | | MFP-50W | | 1 | | 9 | Optical Pulse Width(FWHM) | | 90 | 100 | 110 | ns | 10 | Pulse Repetition Frequency (PRF.

) | MFP-5W | 10 | | 30 | KHz | MFP-10W | 22 | | 50 | MFP-20W | 30 | | 60 | MFP-30W | 30 | | 60 | MFP-50W | 50 | | 80 | 11 | Output Power Stability | Pout=Pnom | | | 5 | % | 12 | Beam Diameter | 1/e2 | 6 | 7.5 | 9 | mm | 13 | Beam Ellipticity | | 90 | | | % | 14 | Delivery Cable Length | | 1.9 | 2.5 | 3 | M | 15 | Laser Startup Time | Pout=Pnom, 10%~90% | | 110 | 140 | us | 16 | Laser Shutdown Time | Pout=Pnom, 90%~10% | | 110 | 150 | us | General Characteristic Parameters | No.

| Characteristics | Test conditions | Min.

| Nom.

| Max.

| Unit | 1 | Operating Environment Tem.

| | 10 | | 42 | | 2 | Storage Tem.

| | -10 | | 60 | | 3 | Cooling Method | Air-cooling | 4 | Warm Up Time | -Operate | | | 1 | min | -Stable | | | 10 | 5 | Operating Environment humidity | | 10 | | 95 | % | 6 | Dimensions | 345.5*266.2*120 | mm | 7 | Weight | MFP-5W | | 7.5 | | kg | MFP-10W | | 10 | | MFP-20W | | 10 | | MFP-30W | | 12 | | MFP-50W | | 12 | | 8 | Power Supply | | 23 | 24 | 25 | VDC | 9 | Power Consumption | MFP-5W | | 90 | | W | MFP-10W | | 12 | | MFP-20W | | 150 | | MFP-30W | | 240 | | MFP-50W | | 360 | | For reference only.

Other beam diameter avai lable by order.

| - - - - Product Application: Widely used marking on metal, part of the non-metallic plating materials, plastic rubber, industrial-used plastics, ceramics and other marking, Deep carved, Fine processing, Special material processing.
