Air Cooled Fiber Laser Source Compact Design Deep Carved For Non Metallic Plating - China

price: check with company for price

Air Cooled Fiber Laser Source Compact Design Deep Carved For Non Metallic Plating

Products Photos Catalog Air Cooled Fiber Laser Photos Catalog

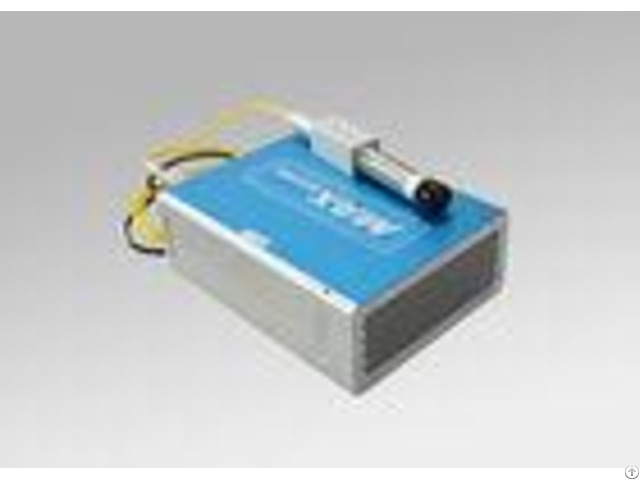

20w 30w 50w Fiber Laser Source Maxphotonics Fiber Laser Module For Marking The Q-Switched Pulsed Fiber Laser (MFP5W-50W) Series products provide a wide range of lasers, the emission wavelength of which is centered at 1064nm.

They are air-cooled and maintenance-free and deliver high efficiency, high reliability, and high performance on marking and engraving, which makes them ideal tools in this area.

Maxphotonics' Q-Switched Pulsed Fiber Laser (MFP5W-50W) Series are Class 4 laser products and are designed and tested with safety.

By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device.

Laser light exhibits unique characteristics that may pose safety hazards.

Therefore, the laser light cant be normally associated with other light sources, and all operators and people near the laser must be aware of these special hazards.

Main Feature: 1 - Short turning on time, short pulse, high peak power, wide repetitive frequency range.

2 - There is no leak when the lasers are switched off.

3 - There is no shadow and Virtual circuit when process the special materials.

4 - Anti-high-reflection function, could do machining on the materials of gold, silver, aluminium, copper etc.

5 - Compact design.

6 - High reliability, long lifetime.

7 - Universal 25 pins interface.

8 - 3D outward design.

- - - - Optical Characteristic Parameters | No.

| Characteristics | 1Test conditions | Min.

| Nom.

| Max.

| Unit | 1 | Mode | Pulse | 2 | Polarization | Random | 3 | Beam Quality M2 | Pout=Pnom | 1.1 | 1.3 | 1.6 | | 4 | Center Wavelength | Pout=Pnom | 1055 | 1064 | 1070 | nm | 5 | Spectrum Width(3dB) | Pout=Pnom | | 5 | 10 | nm | 6 | Average Optical Power(Pnom) | MFP-5W | 4.5 | 5 | 5.5 | W | MFP-10W | 9.5 | 10 | 10.5 | MFP-20W | 19.5 | 20 | 20.5 | MFP-30W | 29.5 | 30 | 30.5 | MFP-50W | 49 | 50 | 51 | 7 | Power Range | | 10 | | 100 | % | 8 | Single Pule Energy | MFP-5W | | 0.45 | | mj | MFP-10W | | 0.56 | | MFP-20W | | 0.67 | | MFP-30W | | 1 | | MFP-50W | | 1 | | 9 | Optical Pulse Width(FWHM) | | 90 | 100 | 110 | ns | 10 | Pulse Repetition Frequency (PRF.

) | MFP-5W | 10 | | 30 | KHz | MFP-10W | 22 | | 50 | MFP-20W | 30 | | 60 | MFP-30W | 30 | | 60 | MFP-50W | 50 | | 80 | 11 | Output Power Stability | Pout=Pnom | | | 5 | % | 12 | Beam Diameter | 1/e2 | 6 | 7.5 | 9 | mm | 13 | Beam Ellipticity | | 90 | | | % | 14 | Delivery Cable Length | | 1.9 | 2.5 | 3 | M | 15 | Laser Startup Time | Pout=Pnom, 10%~90% | | 110 | 140 | us | 16 | Laser Shutdown Time | Pout=Pnom, 90%~10% | | 110 | 150 | us | General Characteristic Parameters | No.

| Characteristics | Test conditions | Min.

| Nom.

| Max.

| Unit | 1 | Operating Environment Tem.

| | 10 | | 42 | | 2 | Storage Tem.

| | -10 | | 60 | | 3 | Cooling Method | Air-cooling | 4 | Warm Up Time | -Operate | | | 1 | min | -Stable | | | 10 | 5 | Operating Environment humidity | | 10 | | 95 | % | 6 | Dimensions | 345.5*266.2*120 | mm | 7 | Weight | MFP-5W | | 7.5 | | kg | MFP-10W | | 10 | | MFP-20W | | 10 | | MFP-30W | | 12 | | MFP-50W | | 12 | | 8 | Power Supply | | 23 | 24 | 25 | VDC | 9 | Power Consumption | MFP-5W | | 90 | | W | MFP-10W | | 12 | | MFP-20W | | 150 | | MFP-30W | | 240 | | MFP-50W | | 360 | | For reference only.

Other beam diameter avai lable by order.

| - - - - Product Application: Widely used marking on metal, part of the non-metallic plating materials, plastic rubber, industrial-used plastics, ceramics and other marking, Deep carved, Fine processing, Special material processing.


Company Contact:


  • Phone: 86-183-12501540

  • Address: Science And Technology Industrial Park Building, No.6 Keyuan Road, Nanshan District, Shenzhen City, Shenzhen , Guangdong , China

  • Email: Email


Published date: February 4, 2018

  • Business Description: Rise laser Co., Ltd. is an integrated enterprise which specializes in Laser products, Laser cutting machine, laser engraving machine and Laser marking machine manufacturer and process international sales and domestic sales.

    The company was founded in 2010.
