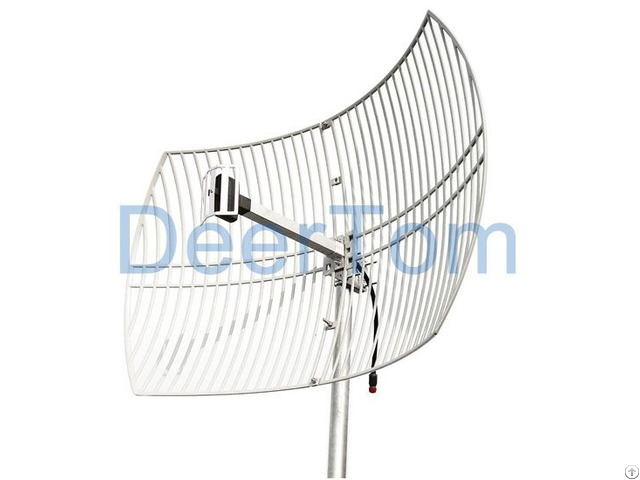

2700mhz Wimax 4g Lte Grid Parabolic Antenna 24dbi High Gain - China

ELECTRICAL

Model DT-GPA2500-2700-24

Frequency Range 2500-2700MHz

Gain 24dBi

Beamwidth H: 9°, E: 13°

VSWR ≤1.5

F/B Ratio ≥30dB

Polarization Vertical

Max Power 50W

Nominal Impedance 50Ω

Lightning Protection DC Ground

MECHANICAL

Connector N Female or customized

Antenna Dimension 600*900mm

Weight 5kg

Mounting Kits L Bracket & U Bolts

Working Temperature -40 ~ + 60℃

Rated Wind Velocity 60m/s
