08b1 1x1t 06 F Through Hole Single Port Magnetic Rj45 Jacks - China

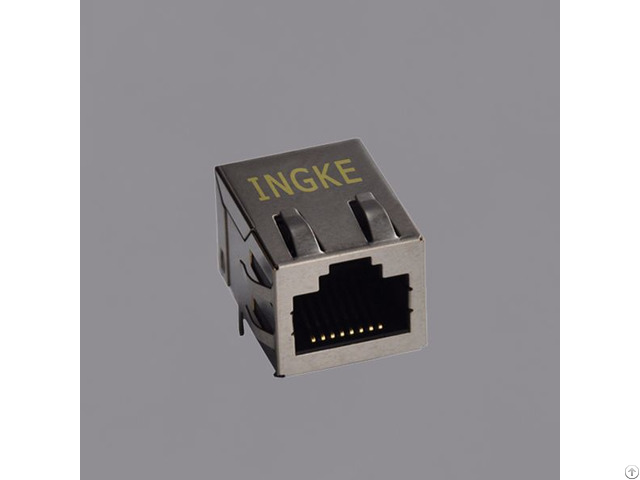

Ingke YKJU-8259NL 100% cross 08B1-1X1T-06-F Through Hole Single Port Magnetic RJ45 jacks Part Number : 08B1-1X1T-06-F

Made in China: YKJU-8259NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Does Not Contain LED

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Lock

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

0826-1M1T-43-F 0826-1A1T-43-F 0826-1B1T-43-F 0826-1D1T-43-F 0826-1L1T-43-F 0826-1XX1-43-F 0826-1G4T-23-F 0811-2X4R-28-F 0863-2X4R-54-F 0879-2C4R-54 0826-1C1T-43-F L8BE-1G1T-91A L834-1G1T-91 L8BE-1G1T-BFH 0826-1X1T-KH-F 0826-1X1T-HS-F G15-111T-076C G15-111T-038E 0838-1X1T-W6 0833-2X4R-54-F 0826-1X1T-80-F 0863-2X6R-54-F 08B1-1X1T-06-F 0826-1L1T-57-F 0816-1X1T-23-F 0862-1J1T-43-F 0813-1X1T-23-F S811-1X1T-03-F
