Utsource Electronic Components Opa2604ap - China

price: 0.67 Dollar US$

1.Description

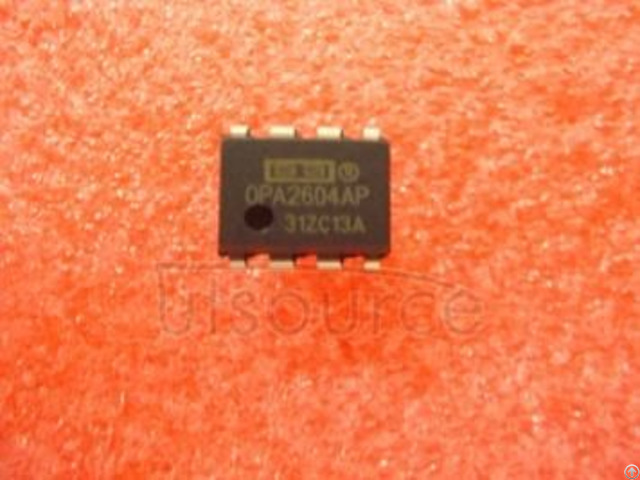

The OPA2604 is a dual, FET-input operational ampli-fier designed for enhanced AC performance. Very low distortion, low noise and wide bandwidth provide superior performance in high quality audio and other applications requiring excellent dynamic performance.New circuit techniques and special laser trimming of dynamic circuit performance yield very low harmonic distortion. The result is an op amp with exceptional sound quality. The OPA2604 is available in 8-pin plastic mini-DIP and SO-8 surface-mount packages, specified for the–25°C to +85°C temperature range. 2. Features
>LOW DISTORTION: 0.0003% at 1kHz
>LOW NOISE: 10nV/√Hz
>HIGH SLEW RATE: 25V/μs
>WIDE GAIN-BANDWIDTH: 20MHz
>UNITY-GAIN STABLE
>WIDE SUPPLY RANGE: V = ±4.5 to ±24V
>DRIVES 600? LOADS
