Neware Battery Testing Machine - China

Background of Neware NEWARE is a testing solutions provider.

Since 1998, NEWARE has been committed to providing world-class battery testing equipment.

And these efforts have been rewarded with more than 100, 000 sets of testing equipment and over 20, 000 customers ranging from battery/capacitor manufacturers, auto makers to R&D institutes.

Moreover, we are now strengthening integrated experiences both on data management and testing activities involving with third parties.

Through this, we provide you highly automated testing system in manufacturing processes and smart testing center enabling you handle complex tests and data.

Reliable and flexible testing solutions are what we do for a sustainable future.

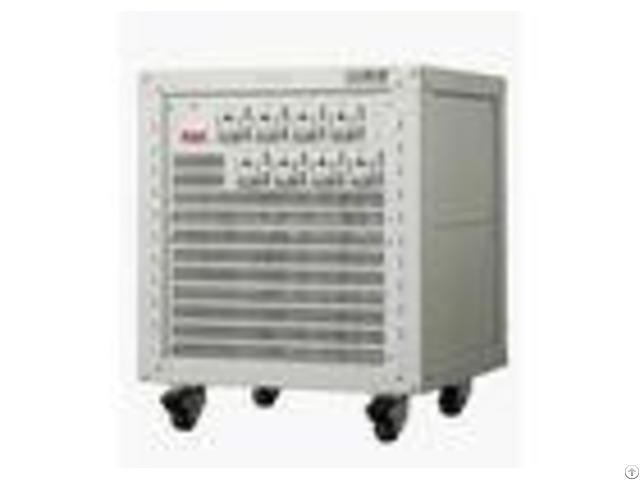

BTS 4000 Series Introduction # BTS 4000 entered into market in the year of 2008 - Now it is one of the most successful and most popular battery testing system in China.

Thousands of battery manufacturers, battery research institutes and laboratories use it as their primary testing partner for their various testing activities.

# BTS 4000 is based on Neware forth generation testing system, and was introduced into the market in 2008 - # BTS-4000 supports EV battery pulse testing, DCIR (direct current internal resistance) testing, Cycle life testing, Rate testing.

# BTS-4000 is now widely used by research institutes, colleges, universities and EV battery manufacturers all around the world.

CT - 4008 - 5V50A - NFA - - - - Series | Channel | Range | N: Network | T: Temperature | A: Anti-reverse | - - - - Model Specification - - - - Output Voltage | CV Output Range | 0.025V~5V | Min Discharge Voltage | 2.5V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Output Current | Output Range | 0.25A~50A | Accuracy | 0.1% of FS | CV Cut-off Current | 0.1A | Stability | 0.1% of FS | - - - - Applications # Current & Voltage # Pulse Test # DCIR Testing(direct current internal resistance) # Capacity and Specific Capacity # Cycle Life # Formation & Grading # Over-charge, Over-discharge Charge and Discharge Mode - - - - Charge | Charge Mode | CC, CV, CCCV, CP | End Condition | Voltage, Current, t, Capacity, -V | Discharge | Discharge Mode | CC, CP, CR | End Condition | Voltage, Current, t, Capacity, -V | Pulse Mode | Charge Mode | CC, CP | Discharge Mode | CC, CP | Min Pulse Width | 500ms | Max Pulse Number | 32 pulse in a single step | Charge And Discharge Switch | Continuous switched for charging and discharging in a single pulse step | End Condition | Voltage, Relative time | - - - - Features # HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge # Market-proven Testing System # <=20ms Response Time to Meet Rapidly Changing Power Requirements # 0.1% Full-scale Accuracy for Current & Voltage # 10Hz Data Acquisition Frequency, 100Hz Optional # 500ms Minimum Pulse Width # More Than 1 Million Records Can Be Processed # 'And', 'or', '', '' and '=' supported; # Condition switches works with step accumulated time; # Up to 5 condition switches for each step; # Go to break supported.

Condition Swithces Sometimes, battery testing steps need to jump or switch to other steps according to different conditions.

Condition switches is exactly how Neware software makes that happen.

The features of Neware software condition switches: 'And', 'or', '', '' and '=' supported; Condition switches works with step accumulated time; Up to 5 condition switches for each step; Go to break supported.

Data Record Settings - - - - Record | Data Record Conditions | Min data record t: 100ms | Min data record V : 0.2% of FS | Min data record I: 0.2% of FS | Frequency | 10Hz | - - - - Data View During the test or at the end of the test, choose the channel menu - Channel Data Right-click selected channel, choose Save As Open the data, select the Save As icon which under the interface, and save the data through the pop-up data dialog box.

Battery Connect
