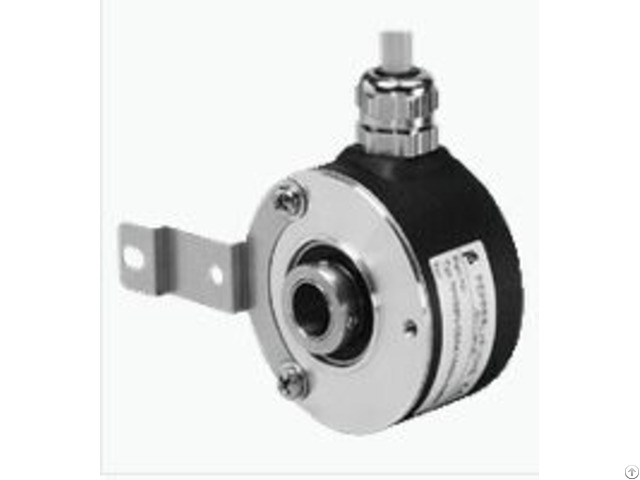

P F General Purpose Incremental Encoder Rhi58n 0bak1r61n 01024 - Germany

General specifications

Detection type photoelectric sampling

Pulse count max.

5000

Functional safety related parameters

MTTFd 140 a

Mission Time (TM) 20 a

L10h 70 E+9 at 6000 rpm

Diagnostic Coverage (DC) 0 %

Electrical specifications

Operating voltage 10 .

30 V DC

No-load supply current max.

60 mA

Output

Output type push-pull, incremental

Voltage drop < 3 V

Load current max.

per channel 40 mA, short-circuit protected, reverse polarity protected

Output frequency max.

200 kHz

Rise time 400 ns

Connection

Cable ∅7.8 mm, 6 x 2 x 0.14 mm2, 1 m

Standard conformity

Degree of protection DIN EN 60529, IP54

Climatic testing DIN EN 60068-2-78, no moisture condensation

Emitted interference EN 61000-6-4: 2007/A1: 2011


Noise immunity EN 61000-6-2: 2005

Shock resistance DIN EN 60068-2-27, 100 g, 3 ms

Vibration resistance DIN EN 60068-2-6, 10 g, 10 .

2000 Hz
