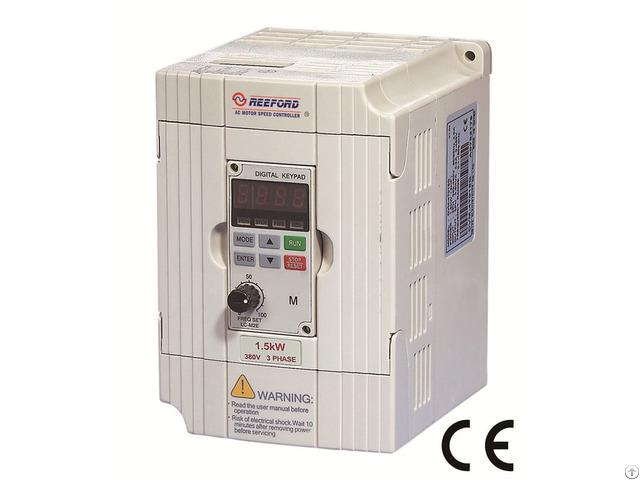

B550 Series Sensorless Frequency Inverter - Chinaprice: contact company for price
1)Power range: Single phase 220V 0.5HP-5HP(0.4-3.7KW)
3-phase 220V 0.5HP-5HP(0.4-3.7KW)
3-phase 380V 1HP-10HP(0.75-7.5KW)
2)Input voltage: Sing phase220V/3-phase220V/3-phase 380V +10%~-15%, 50/60Hz
3)Output frequency: 0.1-400Hz
4)Adjustable V/f curve and vector control
5)Sine wave PWM control
6)Small size, potentiometer on keypad, easy to operate
7)Auto torque boost & slip compensation
8)150% when starting the torque at 1.0Hz
9)8-step speed control and 7-step preset speed process control
10)Built-in PID feedback control
11)Analog frequency setting: 0-10VDC, 4-20mA
12)Modbus RS-485 communication
13)Ennergy saving running and AVR function
14)Auto-adjustment acceleration and deceleration
15)Sleeping and awake up function
16)Simple PLC operation
Packing machine; Dumpling machine; Treadmill; Temperature/humidity control fan for agriculture and aquaculture; Mixer for food processing; Grinding machine; Drilling machine; Small size hydraulic lathe; Coating equipment; Small size milling machine; Wood machine (two-side woodworking planer); Edge bending machine, elasticizer, etc.
- Posted By: Bedford (Quanzhou) Electronic Co.,LTD
- Phone: +86 18050197141
- Address: Luojiang Economic Development Zone, Quanzhou, Fujian, China
- Website: http://www.QZbedford.com
Published date: December 15, 2016 -
- Business Description: We are a professional frequency inverter supplier and exporter in China. We are also Chinese main supplier of Yaskawa series frequency inverter with good reputation and service.
