36v Solar Panel Monocrystallineantireflec tive Glass Boost Bearing Capability - China

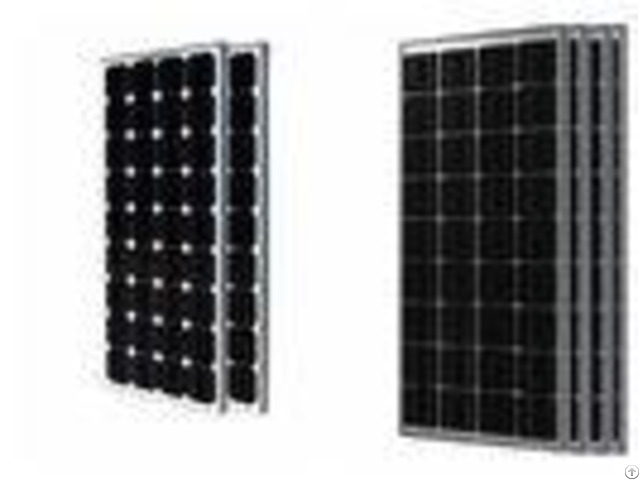

270WpMono Solar panel/ 270W Monocrystalline solar panel, PV module Product field:

1 - Gird-connected power generation system

2 - Off-grid power generation system

3 - Building-integrated power generation facilities

Specifications:

- - - -

Solar Panel Parameters | KL-270W-M | Optimized working voltage | 30.00V | Optimized working current | 9.01A | Open circuit voltage | 36.0V | Short circuit current | 7.5A | Nominal power | 270W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 156156mm | Arrangement quantity | 72(612) | Solar panel dimension | 164099040mm | Weight | 16.0kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - Product features:

1 - Glass: > High-transmittance low-iron tempered glass

> Antireflective glass

> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function

> Service life is as long as 25 years (30 years optional

2 - anti-aging EVA, excellent weathering resistance TPT

3 - Frame

> Anodized quality aluminum frame, beautiful appearance > Conventional frame

> Silver or black frames are optional

> Boost bearing capability and prolong service life > Serrated-clip designtensile strength > Seal-lip designglue injection 4 - Solar Cell > High Efficiency PV Cells

> Appearance Consistency

> Color sorting ensure consistent appearance on each module

> Anti-PID Junction box

> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety

> IP67 protection level

> Heat dissipation

> Long service life 5 - Wind resistance, pressure resistance, high conversion efficiency Packing one pcs per box, or as required Payment - - - - Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | FOB | CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | CIF | L/C | L/C amount above 50, 000 usd, we can accept L/C at sight | West Union | Amount lower than 5000usd | West Union | Delivery Time | 7~10days after receiving payment for one container | - - - -

Company Contact:

• Posted By: Ningbo Kelan Solar Electric Co., Ltd.

• Phone: 86-574-86768338

• Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China

• Email:

• Website: https://www.monocrystalsolarpanel.com

• Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.

  Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
