Absorption Technology Voc Treatment System For Low Medium Concentration Vapor Recovery Absorption Technology for Vapor Recovery Unit # # Summary Vapor Recovery Unit is to collect the organic vapor discharged during the manufacturing, storage, loading and unloading processes of various industries and recycle it by means of condensation, adsorption, absorption, membrane separation, etc.

so as to finally satisfy the emission standards and create certain economic benefits for the end user.

The Absorption Process is suitable for treatment of low & medium concentration oil vapor.

As long as proper absorbent is available at site, absorption process is recommended owing to the easy operation and reduced investment.

Though usually applied in combination with other process, the absorption process can also be solely applied for treatment of substances easily soluble in water, acidic or alkaline liquid.

For instance, it can use water to handle waste gas containing methanol, acetic acid, ammonia, acetone, etc.

to make it acceptable for the emission standard.

# # Principle / Flow Procedure Taking advantage of different solubility of different compositions, The Absorption Process can separate those easily soluble compositions from others.

Most light hydrocarbons dissolve into the absorbent and waste gas containing little light hydrocarbons is discharged from the top of the tower.

For different types of oil vapor, the absorbents can be water, acidic aqueous solution, alkaline aqueous solution, gasoline, diesel and heavy hydrocarbon, etc.

More explanation about the process will be given taking methanol recovery with water absorption technology for example.

The oil vapor after flame arrester is pressurized by an induced fan and then delivered into the absorption tower, where it contacts the absorbent liquid (water) flowing in opposite direction for vapor-liquid equilibrium.

Acceptable emission is obtained after multi-stage equilibrium and discharged from the top, while the liquid with rich methanol leaves from the bottom.

# # Structure & Parameter (typical project) - - - - Model | QY/VR series | Capacity | 50-5000 m3/h | Structure | Skid-mounted | Material | Carbon steel | Applicable exhaust gas | Low & medium concentration oil vapor | Type of absorption tower | Atmospheric pressure packed tower | Type of packing | High efficient structured packing | Control method | PLC automatic control | Main measuring point | Pressure signal, level signal, flow signal | Main chain alarm system | Pressure signal for interlocked blower start-up/shut down; Level signal for interlocked drain pump start-up/shut down; Flow signal to control opening of absorbent liquid valve | Utility required | Instrument air: 10Nm3/h Absorbent liquid: relevant to capacity | Noise | 85dB (A) | Stack height | 15 m | Service life | 25 years | Warranty | 12 months after start-up of 18 months after arrival of equipment | - - - - # # Advantage # # Software: ASPEN for process calculation, SW6 for equipment calculation, CADworx for design of the skid; # High efficiency structured packing and low consumption of absorbent; # High recovery efficiency and acceptable emission from tower top; # Delivered as a skid to reduce site installation work; # Fully sealed blower and flanged connection in the skid to achieve zero leakage; 6) ExdIIBT4 or ExdIICT4 explosion proof.

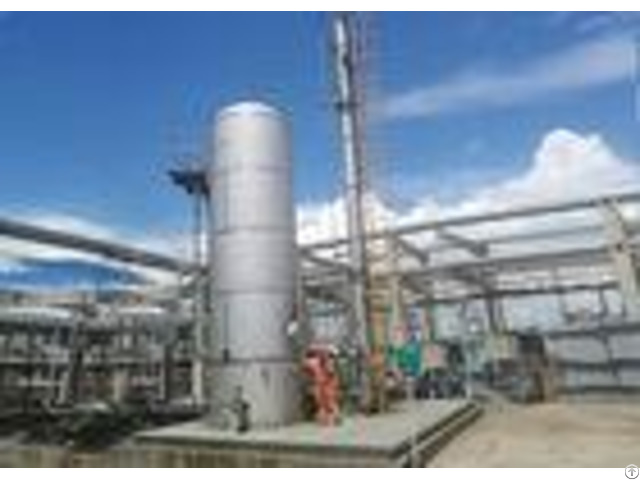

# # Applied data for an typical project PROJECT PICTURE Concentration of emission: Compliance with GB31570-2015, GB31571-2015 and the related local standard.

Details: Benzene 4mg/m3, Toluene 15mg/m3, Xylene 20mg/m3, Ethylbenzene 100mg/m3, Acetonitrile 50mg/m3; Acetone 100mg/m3, Phenol 20mg/m3, Methanol 50mg/m3; Non-methane total hydrocarbons: # Removal rate 97%, # Concentration of emission 120mg/m3; Noise (1m from VRU): 85dB (A) Height of exhaust port: 15m.
