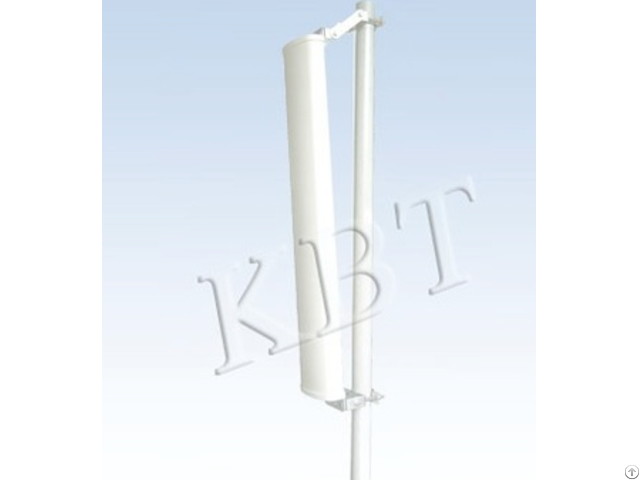

Wlan Sector Panel Antenna 2 4g 16db - China

price: contact company for price

Quick Details

Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KBT
Model Number:
TDJ-2400J18-B
Frequency Range-MHz:
2400-2500
VSWR:
≤1.5
Gain-dBi:
16
Packaging & Delivery

Packaging Details: Standard export packaging (neutral packing and customized packing are available)
Delivery Detail: 7-15 days
Product Description
Specification
2.4GHz 16dBi 120 Degree WLAN WIFI Sector Panel Antenna, IEEE 802.11b, g

Applications
l 2.4 GHz WLAN System
l 2.4GHz ISM Frequency
l IEEE 802.11b, g
l WiFi System

Features
l High Gain and low VSWR
l 120°sector covering
l Compact size and Light weight
l Strong corrosion resistance
l DC Ground
l Internal NK connector
l Supplied with tilt and swivel bracket

Model
TDJ-2400J18-B
Frequency Range-MHz
2400~2500
VSWR
≤1.5
Gain-dBi
16
Polarization
Vertical
Beam width-deg
E:7 H:120
Front to back ratio-dB
≥18
Impedance-ohms
50
Lighting protection
DC Ground
Max Input Power-Watts
200
Connector
N-female
Weight-Kg
3.6
Size-mm
890×175×60
Temperrature(℃)
-40~60


Company Contact:


  • Phone: 15015632355

  • Address: No.2,Chanxiu Road in Foshan ,Guangdong, Foshan, Guangdong, China

  • Email: Email


Published date: September 26, 2016 -

  • Business Description: ◆KBT is one of the largest communication antenna export suppliers in China. We have abundant experience in research & development ,production and sales.

    ◆ We have kinds of product series, the frequency ranges from 1.5MHz to11GHz,it covers the communication systems like HF,VHF,UHF,McWiLL,RFID,GPS,SCDMA,GSM,CDMA,3G,LTE,WLAN,Wi-Fi,WiMAX and microwave which can meet customers multiple needs. We can also provide kinds of relative antenna products and accessories, such as splitter, coupler, surge lightning protector, clamp and cable etc.
