Tspc 21s 21srm 25p Toughsonic 50 Ultrasonic Level And Distance Sensor - China

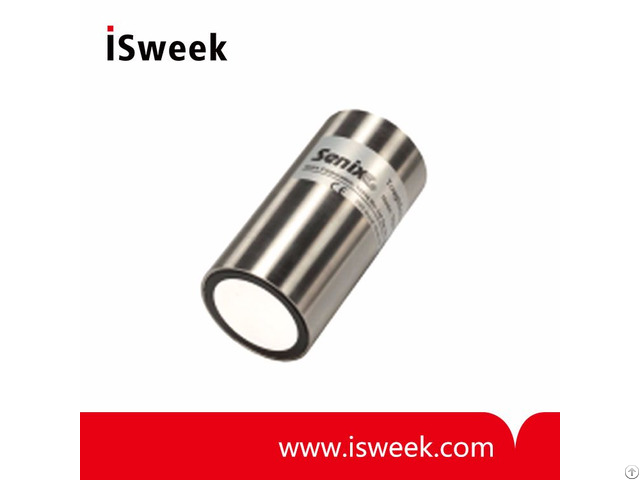

ToughSonic 50 Level & Distance Sensor

Windows PC Setup, Waterproof, Multiple Outputs

/

TSPC sensors and SenixVIEW software put the power of ultrasonics in your hands.

Quickly adjust, optimize, save and clone your setups without calibration!

/

These sensors are housed in a single small potted enclosure for environmental durability and long life.

They mount at a distance from a liquid or solid material and measure distance to the surface.

Sensor outputs respond to that measured distance.

Applications exist in many industries, and include pump control, bulk inventory, high/low level alarms, river level for flood detection and much more.

/

Non-Contact Ultrasonic Distance & Level Measurement

/

TSPC-21S / 21SRM / 25P Ultrasonic Level & Distance Sensor Features

Distance Measurements

• Long range, short dead band

• Continuous and point level

• Water or non-caustic materials

• Adjustable by computer (PC) software, locally or remotely

• Narrow beam with adjustments to optimize performance

/

TSPC-21S / 21SRM / 25P Ultrasonic Level & Distance Sensor Specifications

• Optimum Range: 33 ft.

(10 m)

• Max Range: 50 ft.

(15.2 m)

• Deadband: Typ.

< 12 inches (30.3 cm)

• Adjustment: SenixVIEW software (included)

• Case Material: 316 stainless steel or PVC

• Configuration: Stored in non-volatile memory

• Temperature: -40 to 158 ℉ (-40 to 70℃)

• Outputs: Five selectable, plus serial data

• Humidity: 0 to 100% operating

• Transducer: Ruggedized piezoelectric

• Compensation: Temperature compensated

• Protection: NEMA-4X, NEMA-6P, IP68

/

TSPC-21S / 21SRM / 25P Ultrasonic Level & Distance Sensor Part Numbers

• TSPC-21S-232: Clamp mounted, SS, serial RS-232 interface (PC COM port compatible)

• TSPC-21S-485: Clamp mounted, SS, serial RS-485 interface (allows multi-sensor networking)

• TSPC-21SRM-232: Rear mount threads, 1.5" NPT, Stainless Steel, serial RS-232 interface

• TSPC-21SRM-485: Rear mount threads, 1.5" NPT, Stainless Steel, serial RS-485 interface

• TSPC-25P-232: Threaded 2.5" NPT front and rear, PVC, serial RS-232 interface

• TSPC-25P-485: Threaded 2.5" NPT front and rear, PVC, serial RS-485 interface
