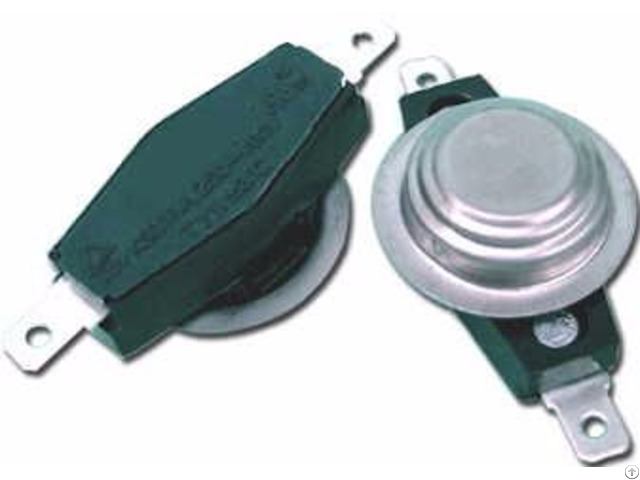

T34 301 20a 40a High Current Thermostat - Taiwan

This type of thermostat is widely applied to temperature controlling and overheating protection in Water Heater, Welding Machine, Welder, Home Laundry and other limit application.

Working Principle:

Being used the bimetal disc as temperature response element.

It will be deformed when the bimetal disc reach a definite temperature.

The snap action of bimetal disc can separate the contactor quickly and cut off the power to protect the appliances or electrical equipment.

thermostat, programmable thermostat

Specification:

Electrical Ratings: AC250V /400V 15A/40A/60A

Circuit Control Mode: NC/NO (Automatic Resetting)

Rated Action Temperature: 45ºC---220 ºC (Designed by user’s requirements)

Open Tolerance: ±2 ºC, ±3 ºC, ±5 ºC

Open & Close Tolerance: 5 ºC -60 ºC

Close Tolerance: ±5ºC, ±10 ºC

Action Cycle: No less than 50, 000 times

Normal Electric Strength: Not Broken within 2000V / 1 minute, No flash.

Normal Isolated Resistance: >100M Ω

thermostat, programmable thermostat
