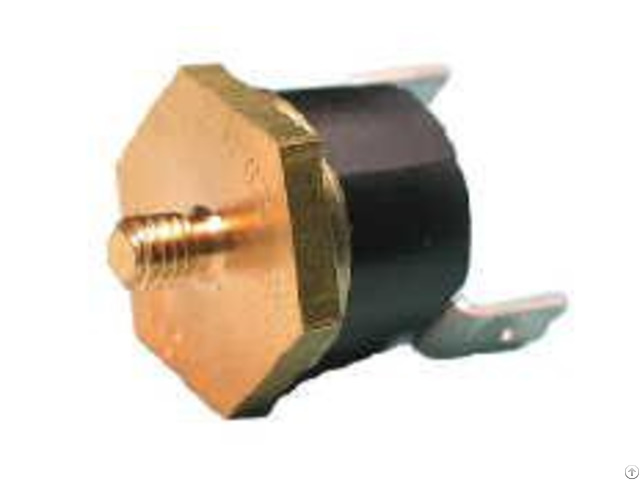

T24 4b Hr1 No Phenolic Bimetal Thermostat For Home Appliance - Taiwan

(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Open)

(2) BRACKET TYPE : Brass hex stud mounting

(3) TERMINAL ORIENTATION : Vertical

(4) TERMINAL SIZE: Amp#187 TAB ( 4.75mm x 0.8t mm )

*Electrical Rating: 16A/250V AC 15A/125V AC 10A/250V AC

*Operation Temp: 40℃~200(ENEC)

40℃~205℃(UL/CUL)

*Differential: 10K~65K

*Calibration Method: 1℃/min.

Air circulation furnace

*Temp.

Tolerance: ±3K / ±5K

*Heat Durability: 180℃*2Hr MAX.

*Circuit Resistance: 50 mΩ MAX.

*Insulation Resistance: 100MΩ min.

at DC 500V

*Dielectric Strength: AC1000V for One Minute or AC 1800V for One Second(Leak current: 0.5mA)

*Operation life: 100, 000 Cycles(15A 125V AC / 10A 250V AC)

10, 000 Cycles(16A 250V AC)

The product is highly customizable in terms of bracket chocies, terminals, and housings.

Please feel free to contact us for a complete product offer.
