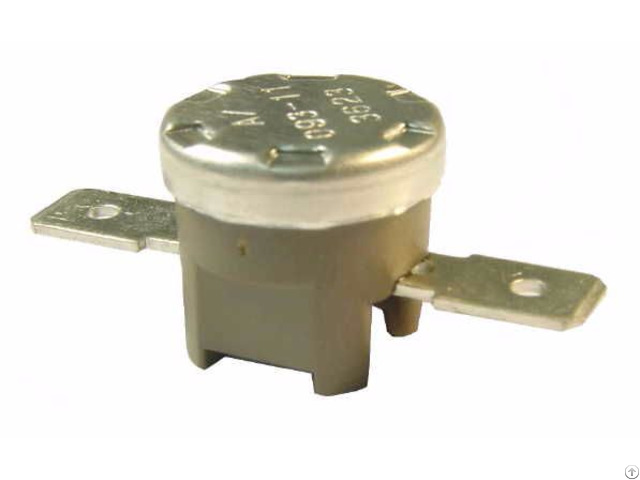

T23 3a Pf2 4 Post Home Appliance Normally Closed Bimetal Thermostat - Taiwan

Specification

(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)

(2) CAP TYPE : C type

(3) TERMINAL ORIENTATION : Horizontal

(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )

(5) 4 Posts (Common in washer/dryer)

*Electrical Rating: 16A/250V AC 15A/125V AC 10A/250V AC

*Operation Temp: 0℃~180(VDE)

50℃~205℃(UL/CUL)

*Differential: 10K~30K

*Calibration Method: 1℃/min.

Air circulation furnace

*Temp.

Tolerance: ±3K / ±5K

*Heat Durability: 180℃*2Hr MAX.

*Circuit Resistance: 50 mΩ MAX.

*Insulation Resistance: 100MΩ min.

at DC 500V

*Dielectric Strength: AC1000V for One Minute or AC 1800V for One Second(Leak current: 0.5mA)

*Operation life: 100, 000 Cycles(15A 125V AC / 10A 250V AC)

10, 000 Cycles(16A 250V AC)

Application:

Popular to be adopted in electric heater, coffee maker, water dispenser, oven, microwave open, water boiler, heater, A/C, or any home applicances require overheating protection.

Our products can be used in DC or AC ratings.

The product is highly customizable in terms of bracket chocies, terminals, and housings.

Please feel free to contact us for a complete product offer.
