T23-3a-nf-cw Wire Type Bimetallic Heating Thermostat - Taiwan

price: 0.95 Dollar US$

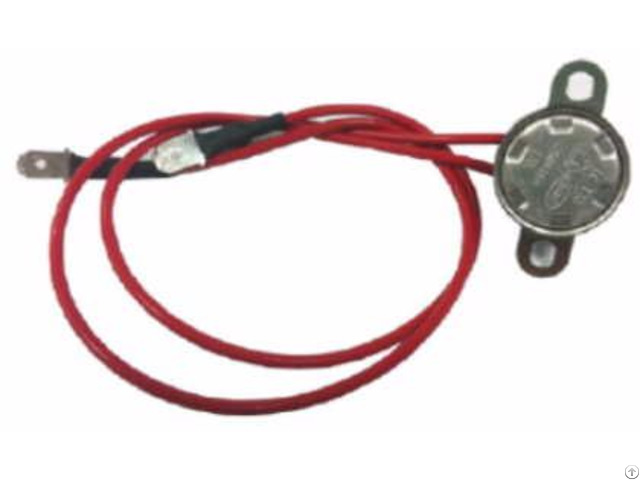

T23-3a-nf-cw Wire Type Bimetallic Heating Thermostat

Products Photos Catalog T23 Wire Bimetallic Photos Catalog

Specifications:

Contact Type: Normally Closed (Operation temp.

depends on customer’s demand.

)

Action Temp: 075°C±3°C

Reset Temp: 065°C±4°C

Cap Type: Fix Cap

Terminal Orientation: Horizontal

Terminal Size: Amp#250 TAB (4.75mm x 0.8t mm) It also can be with wire lead only, which depends on customer’s requirement.

Circuit Resistance: 50MΩ MAX.

Insulation Resistance: 100MΩ min.

at DC 500V

Dielectric Strength: AC 1250V For One Minute

Or AC 1800V For One Sec

Electrical Rating: 16A 250VAC (Resistive Load)

Operating Life and Approvals: CQC: 10, 000: 16A 250VAC

Wire Model: 1332 18AWG, temperature of 200°C

Waterproof Grade IP67


Company Contact:


  • Phone: +886-2-22190080

  • Address: 4F., No.4,, Ln. 560, Zhongzheng Rd,, Xindain Dist., New Taipei City, New Taipei City, Taiwan , Taiwan

  • Email: Email


Published date: August 19, 2016 - Modified date: August 19, 2016

  • Business Description: We are privileged to introduce our top Thermostats, Thermal Cutoff and Solutions in Great China to you.

    Honest-Well Co., Ltd., located in Taipei, Taiwan, was first established in 1997.

    Taipei office continues to provide marketing services to our customers all over the world.

    The products are delivered from Taipei office; we will provide twice random inspections for customers, so we can secure high quality and reliable goods.

    The product category started with Thermostat and gradually expanded its product line to various types of Switches and other Thermal Components such as NTC Sensor and Thermal Protector, etc.

    Trying to meet international standard quality, most of our products acquired UL, CSA, VDE, ENEC certificates and factory also acquired ISO9001: 2000 approval.

    Our products are selling to worldwide, from initial 10% overseas share and increase to 70% more now.

    Our market is expanding from Taiwan, China, Asia, America, Europe, and Middle East.

    Our goods is applied in many kinds of home appliances ot instruments; for example, Water Dispenser, Water Heater, Hair Dryer, and Freezer, etc.

    Your join and participation would be our great honor, as we become more beyond a supplier but a partner in your business.

    “Quality Priority, Cost Effective, Service First & Honest” becomes our motto.
