Panasonic Dpdt Pcb Mount Non Latching Relay 24v Dc Coil 1 A - India

price: check with company for price

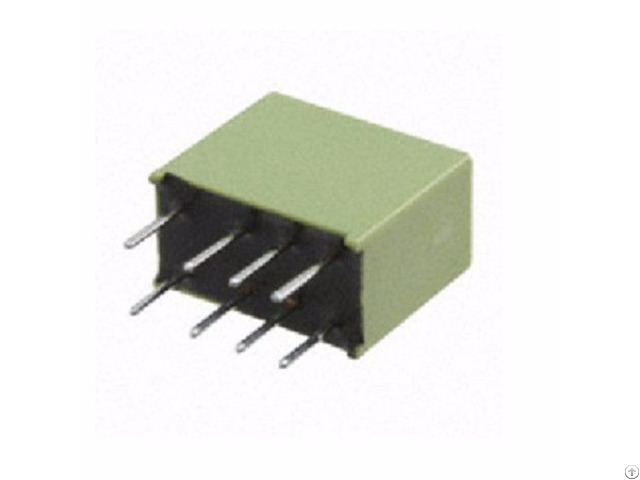

1A 24VDC DPDT NON-LATCHING Low Signal Relay - AGN20024

FEATURES:-

1. High sensitivity single side stable type (Nominal operating power: 100mW) is available
2. Outstanding surge resistance
3. Slim compact size 10.6 (L) × 5.7 (W) × 9.0 (H) mm
4. The use of twin crossbar contacts ensures high contact reliability.

APPLICATIONS:-

1. Security equipment
2. Telephonic equipment
3. Telecommunications equipment
4. Electronic Consumer and Audio Visual equipment
5. Test and Measurement equipment


DESCRIPTIONS:-

Product Range: AGN Series
Contact Configuration: DPDT
Coil Voltage: 24VDC
Contact Current: 1A
Relay Mounting: Through Hole
Coil Type: Non Latching
Contact Voltage VAC: -
Relay Terminals: Solder
Contact Voltage VDC: 30V
Contact Material: Silver Palladium
Coil Resistance: 2.504kohm
Approvals & Standards: CSA, UL
SVHC: No SVHC (15-Jun-2015)

POPULAR PRODUCTS:-5 VDC SPST (1 Form A) Low Signal Relays - PCB, 12 VDC SPDT (1 Form C) 16.7 mA Low Signal Relays - PCB, Latching DPDT (2 Form C) Low Signal Relays - PCB, Latching 3 VDC Gull Wing Lead 11.7 mA Low Signal Relays - PCB, DPDT (2 Form C) Communications Relays Low Signal Relays - PCB, 24 VDC 8 A Low Signal Relays - PCB etc


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad, haryana, India

  • Email: Email


Published date: November 7, 2016 -
