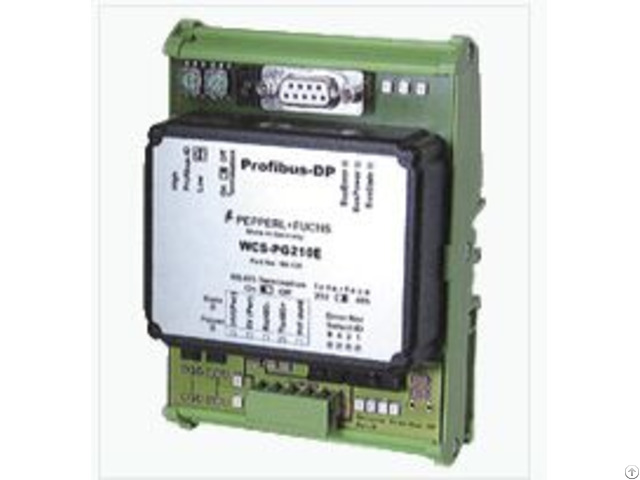

P F \ Interface Module Wcs Pg210e - Germany

General specifications

Installation DIN rail mounting

Functional safety related parameters

MTTFd 240 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Electrical specifications

Operating voltage 24 V DC ± 20 %

Power consumption ≤ 3.6 W (without read heads)

Interface 1

Connection of control system

Interface type PROFIBUS DP V1

Transfer rate max.

12 MBit/s, Automatic baud rate detection

Data output format binary code

Bus termination resistor switchable

Interface 2

Connection of Read head

Connectable read heads WCS.

A-LS221, WCS.

A-LS121, WCS.

B-LS121, WCS.

B-LS221

Interface type RS-485

Transmission method half duplex

Transfer rate 62.5 kBit/s

RS485 termination resistor switchable

Refresh cycle of read head 1 ms

Standard conformity

Emitted interference EN 55011

Noise immunity DIN EN 50082-2

Approvals and certificates

CCC approval CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Operating temperature 0 .

45 °C (32 .

113 °F), no moisture condensation

Storage temperature -40 .

70 °C (-40 .

158 °F)

Relative humidity ≤ 80 %

Mechanical specifications

Connection type Interface 1: 9-pin Sub-D connector

Interface 2: terminal connection ≤ 2.5 mm2, 5-pin

Housing width 90 mm

Housing height 127 mm

Degree of protection IP24

Material plastic

Installation position any position

Mass approx.

200 g
