Ms5535c 14 Bar Pressure Sensor Module - China

price: check with company for price

Ms5535c 14 Bar Pressure Sensor Module

Products Photos Catalog Ms5535c Bar Pressure Photos Catalog

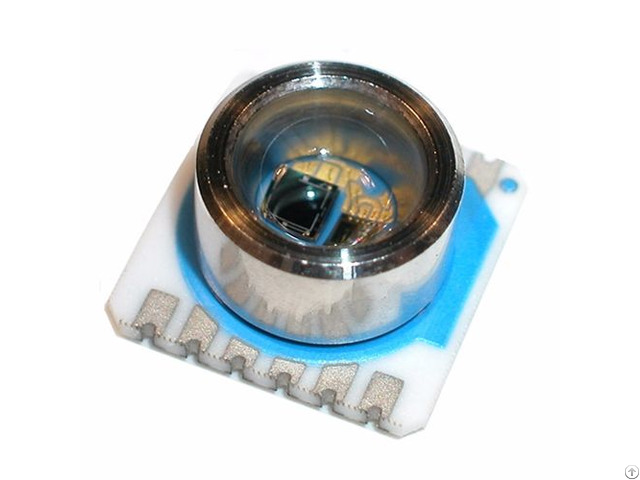

MS5535C Pressure Sensor Module Description:

The MS5535C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC.

It provides a 16-bit data word from a pressure and temperature dependent voltage.

Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor.

MS5535C is a low power, low voltage device with automatic power down (ON/OFF) switching.

A 3-wire interface is used for all communications with a microcontroller.

/

The MS5535C is fully software compatible to the previous versions (MS5535A and MS5535B).

Compared to the previous versions, the ESD sensitivity has been improved to 4kV on all pins.

/

MS5535C Pressure Sensor Module Features:

• Integrated pressure sensor (9x9 mm) • Pressure range 0-14 bar (200 PSI) • 16 Bit ADC • 6 coefficients for a software compensation stored on-chip • 3-wire serial interface • 1 system clock line (32.768 kHz) • Temperature range -40.

+125°C • Low voltage (2.2 to 3.6V) • Low power (Standby current: 0.1uA) • Pb-free and RoHS-compatible • Soldering profile: 240-250°C • Low supply current • No external components required

/

MS5535C Pressure Sensor Module Application:

• Mobile water depth measurement systems • Diving computers and divers watches
