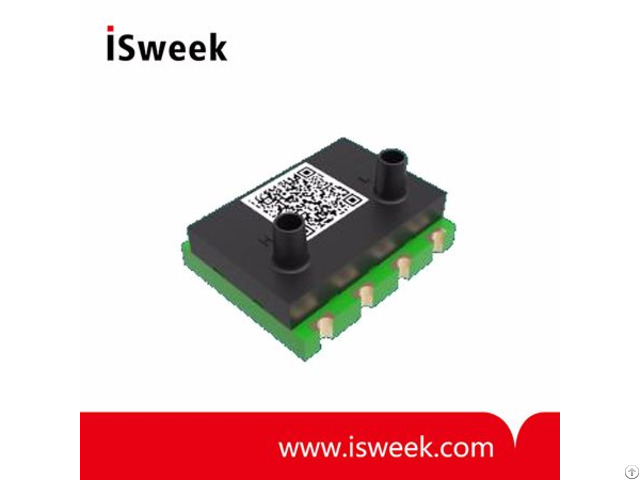

Mdp2000 Mdp3000 Smt Thermal Mems Differential Pressure Sensors - China
price: check with company for price
MDP2000/MDP3000 Differential Pressure Sensors General Description
MEMSIC's MDP2000 series MEMS differential pressure sensors measure ultra-low gas pressures covering the range of up to ±500Pa (±2 inH2O).
The technology is based on MEMSIC's highly successful proprietary CMOS thermal accelerometers already sold in millions.
MDP2000 series offers a wide dynamic range, superb long-term stability, and outstanding repeatability and hysteresis.
/
MEMSIC's thermal flow sensing element is monolithically integrated with CMOS signal processing circuitry and embedded software capable of providing SPI output of 15 bit digital raw counts.
The polynomial fitting calibration coefficients are provided by QR code label for easy scanning to convert output to differential pressure.
/
MDP2000/MDP3000 Differential Pressure Sensors Features
• Pressure range up to ±500Pa with high accuracy of ±3.0% m.v.
• Pressure based on thermal micro-flow measurement
• Outstanding hysteresis and repeatability
• Linearized and temperature compensated
• SPI with 16bit resolution
• Cost Effective
• RoHS and REACH compliant
• SMT Package
/
MDP2000/MDP3000 Differential Pressure Sensors Applications
• Medical CPAP and Ventilator
• HAVC and building control solution
• Burner Control
• Filter Monitoring
• Process Control and Automation
