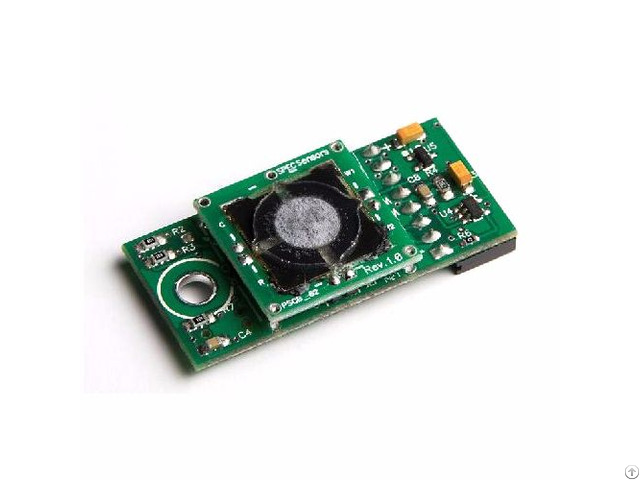

Iot Co 1000 Calibrated Digital Carbon Monoxide Gas Sensor Module - China

IOT_CO_1000 Gas Sensor 968-028 Calibrated Digital CO Sensor Module

/

IOT_CO_1000 Carbon Monoxide (CO) Gas Sensor Module BENEFITS

• Low Power - 1 mW @1 minute sampling

• Fast Response - 15 seconds typical

• Calibrated & Temp.

Compensated Output

• Simple Digital UART Interface

• Integrated T & RH Sensors

• Robust 10-year Estimated Lifetime

• ROHS Compliant

• Small form Factor

• UART to USB adapter provided

• Lightweight (< 2 Oz.

)

• Scalable to high volume

/

IOT_CO_1000 Carbon Monoxide (CO) Gas Sensor Module APPLICATIONS

• Life Safety Levels

• Air Quality Levels

/

IOT_CO_1000 Carbon Monoxide (CO) Gas Sensor Module DESCRIPTION

SPEC Sensors now offers an easy way to add gas sensing to the Internet of Things.

Combining our Screen Printed ElectroChemical sensor technology (SPEC Sensor™) with state-of-the-art electronics and algorithms, enables easy integration of small, lightweight, high performance, ultra-low power consumption gas sensing into wireless, portable, and networked solutions.

/

IOT_CO_1000 Carbon Monoxide (CO) Gas Sensor Module SPECIFICATIONS

Measurement Range: 0 to 1000 ppm

Resolution: 0.1 ppm

Zero Accuracy: +/- 1 ppm when Zeroed after Power-up Stabilization

Measurement Accuracy: 10% of reading

Measurement Repeatability: < +/- 3 % of reading or 0.5 ppm, whichever is greater

T90 Response Time (100 ppm step): < 30 seconds (15 seconds typical)

Power Consumption: 1 mW for 1 minute triggered samples; 12 mW for continuous sampling 5, 10 30, 60 second intervals

Expected Operating Life: > 5 years (10 years @ 25+/-10C; 60+/-30% RH)

Operating Temperature Range: -20 to 40 C (-30 to 55C intermittent)

Operating Humidity Range: 15 to 95% (0 to 100% non-condensing intermittent)

Mechanical Dimensions: 1.75 x 0.82 x 0.35 in.

(44.5 x 20.8 x 8.9 mm)

Weight: < 2 Ounces
