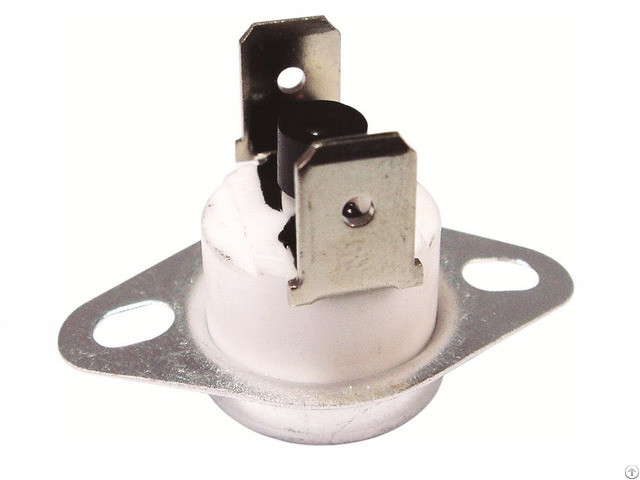

H2 33m Br Manual Reset Ceramic Bimetal Thermostat - Taiwan

(1) Ceramic body.

(2 CONTACT TYPE :

Contact Opens When Temperature Rises To Set Point

(3) Manual Reset

(4) CAP TYPE : B Cap

(5) TERMINAL ORIENTATION : Vertical

(6) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )

Specification:

*Rating：AC125/250V, 5A/7.5A/10A/15A

*Operation Temp: 16A/125V 45℃~180℃ ; 16A/250V 45℃~180℃

*Differential: 10K~80K( Standard15K)

*Tolerance of Open Temp：±1.5℃；±2℃� ��±3℃；±5℃；±10� ��

*Dielectric Strength：AC1, 800V for1 minute;

*Insulation Resistance：≥5MΩ(at DC 500V)

*Contact Resistance：≤50mΩ

*Heat-Resistant Spec： PF 180℃, UP/PPS 220℃, EC 250℃ (24Hours)

*Lifetime Resisitive：6, 000 cycles

*Application:

Water heater & relative appliance, Electric refrigerator & relative appliance, Coffee maker, Microwave oven, Sterilized cupboard, High power heater.

*For example:

Model Off temp.

On.

temp.

Contact Dielectric

(C) (C) state rating

H2M/33-45/-/111BH 45+/- 3 -- N.C. 250V/ 10A



HW H2 Series -

We can customize this bimetal thermostat according to client’s needs.

This snap action temperature switch in three single-pole, single-throw (SPST) switch actions:

Automatic Reset – either open or close its contacts on temperature rise.

Manual Reset – Available with contacts that open on temperature rise.

The contacts must be reset by pressing the button after the device cools down.

One shot – Available with contacts that open on temperature rise, and which never reclose unless the ambient temperature drops below -35°C.

For clients who wish to have action temperature above 180°C, we’d recommend our ceramic thermostat H2 series.
