General Purpose Relays Spst No Sealed 24vdc Classf Hi Capacity - India

price: 1.00 Dollar US$

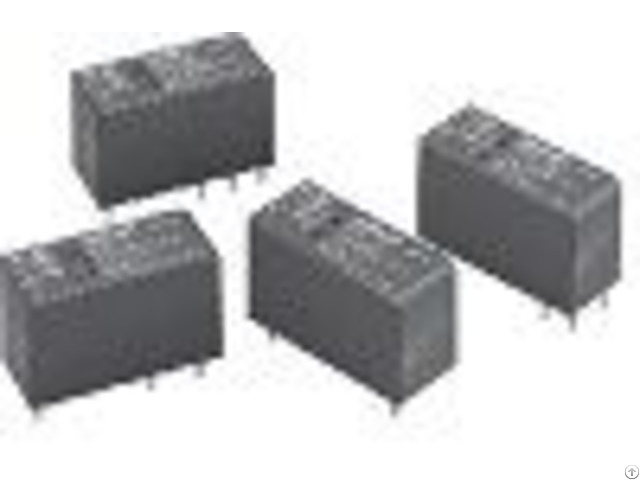

General Purpose Relays SPST-NO Sealed 24VDC ClassF Hi-Capacity


DESCRIPTION:-
Product Category: General Purpose Relays
Manufacturer: Omron
RoHS: RoHS Compliant Details
Coil Voltage: 24 VDC
Contact Form: SPST (1 Form A)
Contact Current Rating: 16 A
Mounting Style: Through Hole
Switching Voltage: 440 VAC, 300 VDC
Coil Resistance: 1.44 kOhms
Coil Current: 16.7 mA
Contact Material: Silver Alloy (Ag)
Brand: Omron Electronics
Height: 15.7 mm
Length: 29 mm
Power Consumption: 400 mW
Series: G2RL-1
Factory Pack Quantity: 100
Width: 12.7 mm
Part # Aliases: 372716 BY DC24 G2RL-1A-E G2RL-1A-E-CF G2RL-1A-E-DC24-BY-OMB G2RL1018B G2RL1AE24DC G2RL1AEDC24BYOMB OMB
