General Purpose Relays Power Pcb Relay 12vdc G5rl 1a E Hr Dc12 - India

price: contact company for price

General Purpose Relays Power Pcb Relay 12vdc G5rl 1a E Hr Dc12

Products Photos Catalog Relays Power Pcb Relay Photos Catalog

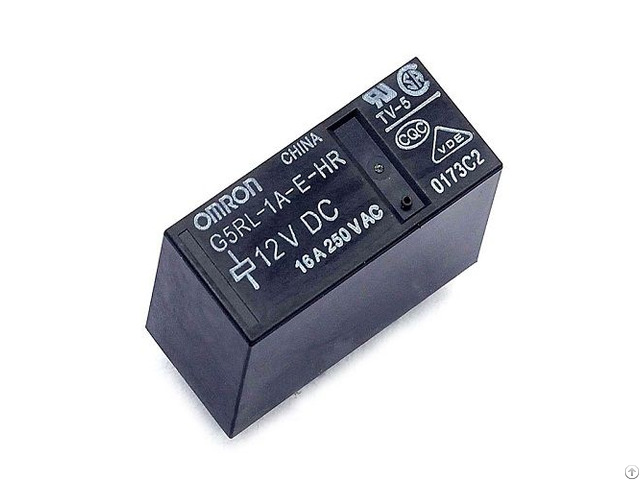

16A PCB Relay SPST-NO 12VDC - High Irush current upto 100A - G5RL-1A-E-HR-DC12

FEATURES: -

• Low profile: 15.7 mm in height

• Creepage distance 8mm between coil and contacts

• 10 kV Impulse withstand voltage

• Models with AC coil available.

• High-Inrush model available (Inrush peak currents up to 100 A)

• Low Noise model available (Approx.

10 to 20 dB less sound pressure than standard G5RL-Series Relays)

• RoHS Compliant

DESCRIPTION: -

Product Category: General Purpose Relays

Manufacturer: Omron

RoHS: RoHS Compliant Details

Product: Low Profile Relays

Type: Miniature

Coil Voltage: 12 VDC

Contact Form: SPST (1 Form A)

Contact Current Rating: 16 A

Contact Termination: Solder Pin

Mounting Style: Through Hole

Switching Voltage: 250 VAC, 24 VDC

Coil Termination: Solder Pin

Coil Type: Non-Latching

Coil Resistance: 360 Ohms

Coil Current: 33.3 mA

Contact Material: Silver Alloy (Ag)

Brand: Omron Electronics

Height: 15.7 mm

Length: 29 mm

Maximum Switching Current: 16 A

Power Consumption: 400 mW

Series: G5RL

Factory Pack Quantity: 100

Width: 12.7 mm

Part # Aliases: 659756 G5RL-1A-E-HRDC12 G5RL1AEHR12DC
