General Purpose Relays 120vac G7l1atub Ac200 240 - India

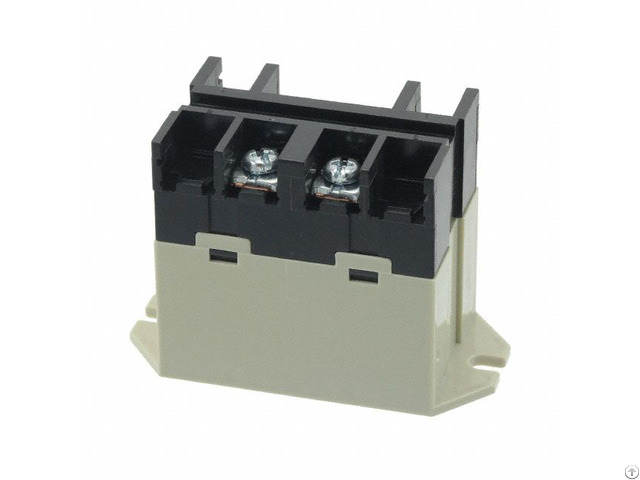

General Purpose Relays 30A PWR Relay SPST 120VAC SCREW : - G7L1ATUB, AC200/240

FEATURES: -

• Ideally suited for high-inrush fluid pump controls: pool/spa, water

processing, emergency, chemical industry, etc.

• High-capacity, high-withstand voltage relay with no contact chattering

for momentary voltage drops up to 50% of rated voltage.

• UL Class B construction standard.

• Wide-range AC-activated coil that handles 100 to 120 VAC or 200

to 240 VAC at either 50 or 60 Hz.

• Miniature size for maximum switching capacity, particularly for

inductive loads.

• Flame resistant materials (UL94V-0-qualifying) used for

all insulation material.

• Quick-connect, screw, PCB terminals and DIN track mounting available.

• Conforms to UL, CSA, TUV and meets IEC 950.

• Safety design with contact gap of 3 mm.

• RoHS Compliant.

APPLICATION: -

• Compressors for package air conditioners and heater switching

controllers

• Switching controllers for power tools or motors

• Power controllers for water heaters

• Power controllers for dryers

• Lamp control, motor drivers, and power supply switching in copy

machines, facsimiles, and other office equipment

• Lighting controllers

• Power controllers for packers or food processing equipment

• Magnetron control in microwaves

• Power controllers for Uninterruptible Power Supplies (UPS)

DESCRIPTION: -

Product Category: General Purpose Relays

Manufacturer: Omron

RoHS: RoHS Compliant Details

Coil Voltage: 100 VAC to 120 VAC

Contact Form: SPST (1 Form A)

Contact Termination: Screw

Mounting Style: Panel

Mounting Type: Bracket

Coil Termination: Screw

Coil Type: Non-Latching

Contact Material: Silver (Ag)

Brand: Omron Electronics

Power Consumption: 2.5 W

Series: G7L(STANDARD)

Factory Pack Quantity: 20

Part # Aliases: 9856102 G7L1ABUBJCBAC100120NC
