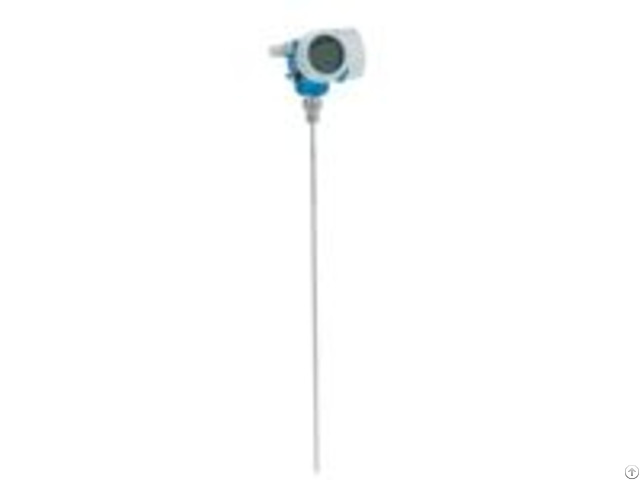

E H Guided Radar Measurement Time Of Flight Levelflex Fmp51 3m8e3 0 - Germany

Measuring Principle Guided radar

Characteristic / Application Premium device

Rod probe, Rope probe, Coaxial probe

Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias.

Interface measurement Clean interfaces liquid/ liquid;

Simultaneous measurement of interface and overall level

Supply / Communication 2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)

4-wire (HART)

Accuracy Rod probe : +/- 2 mm (0.08 in)

Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in)

Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)

Coaxial probe: +/- 2 mm (0.08 in)

Ambient temperature -40.

+80 °C

(-40.

+176 °F)

Process temperature –40.

+200 °C

(–40.

+392 °F)

Process pressure absolute / max.

overpressure limit Vacuum.

40 bar

(Vacuum.

580 psi)

Main wetted parts Rod probe:

316L, Alloy C, Ceramic

Rope probe:

316, 316L, Alloy C, Ceramic

Coaxial probe:

316L, Alloy C, Ceramic, PFA

Process connection Thread:

G3/4 - G1 1/2;

MNPT 3/4 - MNPT1 1/2

Flange:

ASME 1 1/2".

8", DN50 - DN 200, JIS 10K

Sensor length Rod probe: 10 m (33 ft)

Rope probe: 45 m (148 ft)

Coaxial probe: 6 m (20 ft)

Max.

measurement distance Rod: 10 m (33 ft) Min DK>1.6

Rope: 25 m.

30 m (82ft.

98 ft) Min DK>1.6;

30m.

45 m (98ft.

148 ft) Min DK>1, 9

Coaxial probe: 6 m (20 ft) Min DK>1.4

Communication 4.20 mA HART

PROFIBUS PA

FOUNDATION Fieldbus

Certificates / Approvals ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC

Safety approvals Overfill prevention WHG

SIL

Design approvals EN 10204-3.1

NACE MR0175, MR0103

ASME B31.1, B31.3

AD2000

Marine approval GL/ ABS/ LR/ BV/ DNV

Options Sensor remote with 3 m/9 ft cable

Gas-tight feed through

Application limits Horizontal storage tank cyl: use coax probe

Corrosive liquids: FMP52

Interface measurement: Use coax system in favor (coax probe, bypass, stilling well)

Interface with emulsion: FMP55
