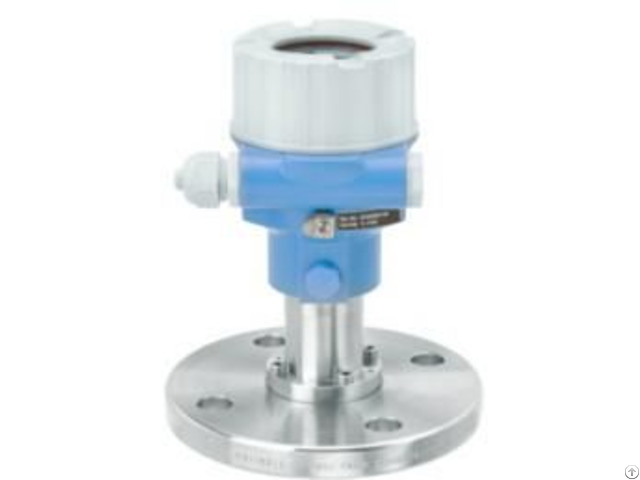

E H Absolute And Gauge Pressure Cerabar Pmc51 Aa21ja1cgcgmja Ak - Germany

Measuring Principle Absolute and gauge pressure

Characteristic Smart and reliable pressure transmitter with capacitive measuring cell and ceramic process isolating diaphragm Ceraphire)

Supply voltage 4.20mA HART

11, 5.45V DC (Non Ex):

Ex ia: 11, 5.30V DC

PROFIBUS PA:

FOUNDATION Fieldbus:

9.32 V DC (Non Ex)

Reference Accuracy Standard 0, 15%

Platinum 0, 075%

Long term stability < 0, 1% of URL/ year

< 0, 25% of URL/ 5 years

< 0, 4% of URL/ 10 years

Process temperature -40°C.

130°C

(-40°F.

266°F

150°C for 1h

(302°F for 1h)

Ambient temperature -40°C.

85°C

(-40°F.

185°F)

Measuring cell 100mbar.

40bar

(1.5psi.

600psi)

relative/ absolute

Smallest calibratable span 10 mbar (1.45 psi)

Vacuum resistance 0 mbar abs.

Max.

Turn down 20: 1

Max.

overpressure limit 60bar (900psi)

Process connection Thread:

G1/2 - G2, R1/2, MNPT1/2

Flange:

DN25 - DN80, ASME 1".

4", JIS 10K

Process connection hygienic Tri-Clamp

DIN11851

DIN11864-1

NEUMO

Varivent N

SMS

DRD

Material process membrane Ceramic

Material gasket Viton, EPDM, NBR, Kalrez

Fill fluid None, dry measuring cell

Material housing Die-cast aluminum, AISI 316L

Communication 4.20 mA

4.20 mA HART

PROFIBUS PA

FOUNDATION Fieldbus

Certificates / Approvals ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

Safety approvals SIL

Design approvals EN10204-3.1

NACE MR0175

Hygienic approvals CoC ASME-BPE

3A, EHEDG

Marine approvals GL/ ABS/ LR/ BV/ DNV

Drinking water approvals NSF
