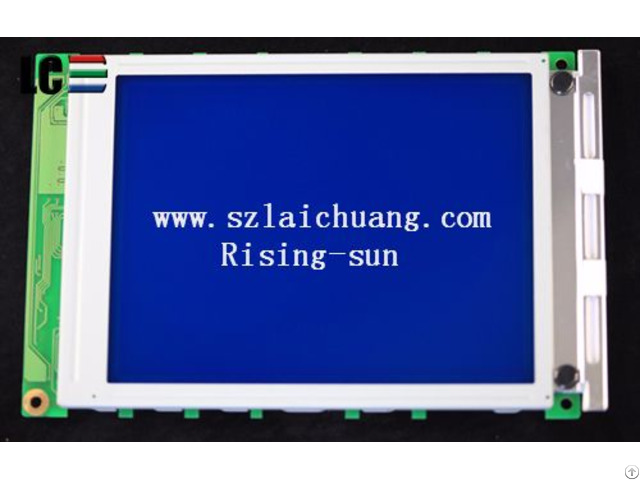

AG320240A4STCWS1H

Mechanical Data

Item Standard Value Unit

Module Size 167.1*(W) x 109.0 (H) x12.5(T) mm

Viewing Area 122.0 (W) x 92.0 (H) mm

Display Area 115.185(W)x 86.385(H) mm

Dot Pitch 0.36(W)*0.36(H) mm



Absolute Maximum Ratings

Parameter Symbol Min Max Unit

Supply Voltage for logic VDD -0.3 5.5 V

Input voltage VI -0.3 VDD+0.3 V

Operating Temp TOP -20 70 ℃

Storage Temp TST -25 80 ℃



Parameter Symbol Conditions Min.

Typ.

Max.

Units

Supply Voltage (Logic) VDD - VSS -- 4.5 5 5.5 V

Supply Voltage (LCD Drive) VDD – VO -- 22.9 24 25.1 V

VDD - VO Shown in 3.1 V

High Level (Input Voltage) VIH -- 0.7VDD -- VDD V

Low Level (Input Voltage) VIL -- VSS -- 0.3VDD V

High Level (Output Voltage) VOH IOH = -0.5mA 2.4 -- -- V

Supply Current IDD VDD = 5.0V -- 25 -- mA

IEE VDD =5.0V -- 6 -- mA

Frame fF Duty = 50% -- 70 -- Hz
