5vdc Power Relay G2rl 1a4 E Dc5 - India

price: check with company for price

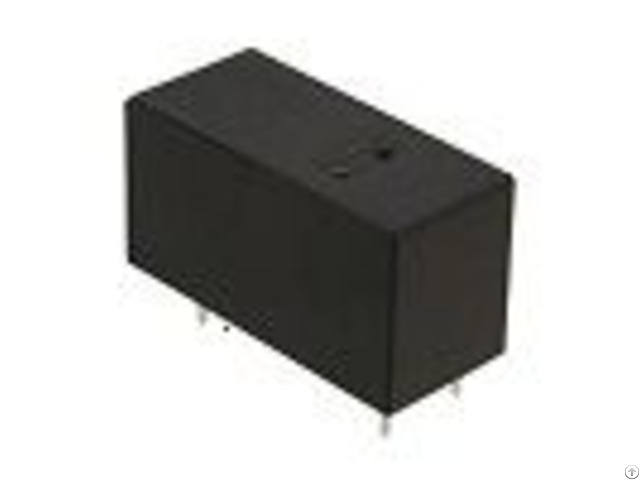

16A, 5VDC SPST-NO PCB Power Relay - G2RL-1A4-E DC5

FEATURES:-
• A wide variety of single pole, double pole, high-capacity (16 A)
type and high-sensitivity type (250 mW) Relays are available.
• Low profile; 15.7 mm max. in height.
• Conforms to VDE (EN61810-1), UL508 and CSA22.2.
• IEC/EN 60335-1 conformed. (-HA Model)
• Satisfies ambient operating temperature requirement of 85°C
and 105°C (-CV Model).
• Clearance and creepage distance: 8 mm / 8 mm min.
• Coil insulation system: Class F (UL1446).


APPLICATION:-
• Home appliances
• OA equipments
• Industrial machinery

DESCRIPTION:-
Relay Type General Purpose
Coil Type Non Latching
Coil Current 80mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 440VAC, 300VDC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Contact Material Silver Alloy, Cadmium Free
Coil Power 400 mW
Coil Resistance 62.5 Ohms
Operating Temperature -40°C ~ 85°C
