4pin Mount Solid State Relays Aqz102 - India

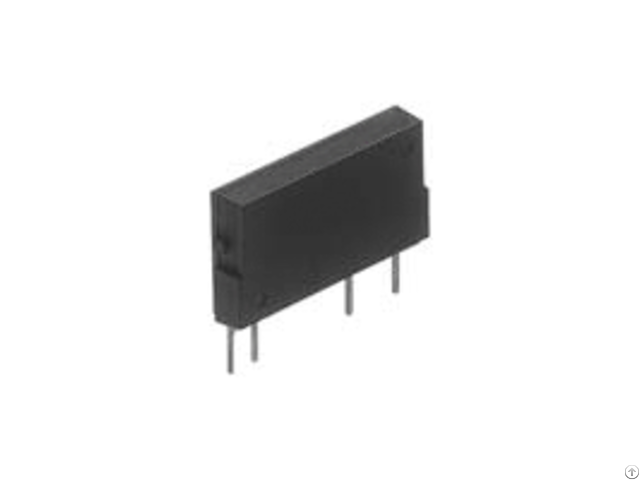

4A 60V 4PIN SPST PCB Mount Solid State Relays - AQZ102

FEATURES: -

1 - Slim SIL4-pin package (W) 3.5 × (D) 21.0 × (H) 12.5 mm

2 - Extremely low on-resistance

3 - Control low-level signal

4 - Low-level off state leakage current of max.

10 µA

5 - High I/O isolation voltage of 2, 500 V

6 - Eliminates the need for a counter electromotive protection diode in the drive circuit on the input side

7 - Eliminates the need for a power supply to drive the power MOSFET

8 - No restriction on mounting direction

9 - Low thermos electromotive force

10 - Neither noise nor arc at contact

11 - Sockets are also available

12 - Can be installed on the RT-3 relay terminal (Power Photo MOS type)

APPLICATIONS: -

• Traffic signals

• Measuring instruments

• Industrial machines

DESCRIPTION: -

Manufacturer: Panasonic

Product Category: Solid State Relays - PCB Mount

RoHS: RoHS Compliant By Exemption Compliant

Brand: Panasonic Industrial Devices

Control Voltage Range: 1.5 V to 5 V

Load Voltage Rating: 60 V

Load Current Rating: 4 A

Input Current: 50 mA

Contact Form: SPST (1 Form A)

Output Device: MOSFET

Package / Case: SIP-4

Mounting Style: Through Hole

Input to Output Isolation Method: Optocoupler

Packaging: Tube

Product: Telecommunication Relays

Series: AQZ

Factory Pack Quantity: 25

Termination Style: Solder Pin

Tradename: PhotoMOS
