3vdc Latching Pcb Signal Relays Tx2 L 3v - India

price: check with company for price

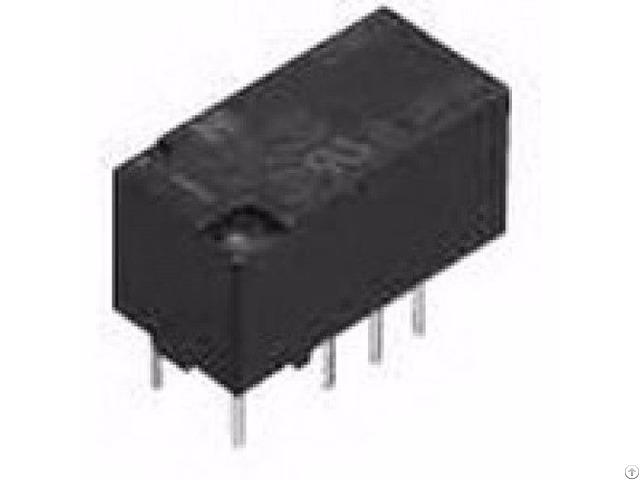

2A 3VDC DPDT LATCHING PCB Signal Relays -TX2-L-3V

FEATURES:-
• Breakdown voltage between contacts and coil: 2, 000 V
• Surge withstand between contacts and coil: 2, 500 V
• High contact capacity: 2 A 30 V DC
• Surface-mount type available

APPLICATION:-
1. Communications (xDSL, Transmission)
2. Measurement
3. Security
4. Home appliances, and audio/visual equipment
5. Automotive equipment
6. Medical equipment

DESCRIPTION:-
Manufacturer: Panasonic
Product Category: Low Signal Relays - PCB
RoHS: RoHS Compliant By Exemption
Brand: Panasonic Industrial Devices
Product: Low Profile Relays
Contact Form: DPDT (2 Form C)
Contact Current Rating: 2 A
Coil Voltage: 3 V
Maximum Switching Current: 2 A
Coil Current: 33.3 mA
Coil Type: Latching
Power Consumption: 100 mW
Isolation: 20 dB at 1 GHz
Insertion Loss: 0.8 dB at 1 GHz
Contact Rating: 2 A at 30 VDC
Contact Termination: Solder Pin
Mounting Style: Through Hole
Packaging: Tube
Factory Pack Quantity: 40

POPULAR PRODUCTS:-
5 VDC SPST (1 Form A) Low Signal Relays - PCB, 12 VDC SPDT (1 Form C) 16.7 mA Low Signal Relays - PCB, Latching DPDT (2 Form C) Low Signal Relays - PCB, Latching 3 VDC Gull Wing Lead 11.7 mA Low Signal Relays - PCB, DPDT (2 Form C) Communications Relays Low Signal Relays - PCB, 24 VDC 8 A Low Signal Relays - PCB etc


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad, haryana, India

  • Email: Email


Published date: November 9, 2016 -
