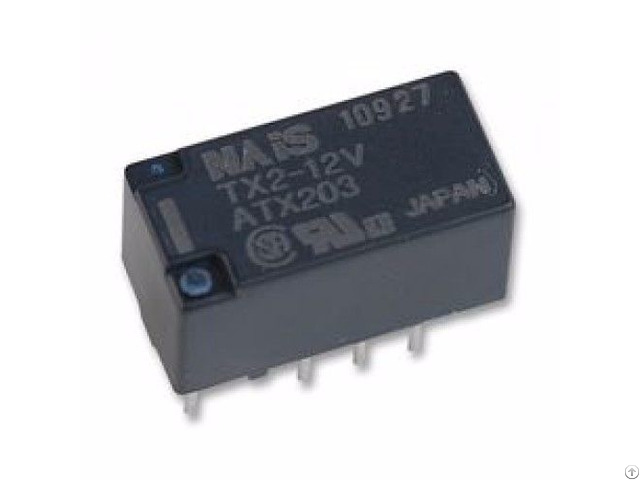

2a 12vdc Dpdt Non Latching Pcb Signal Relays Tx2 12v - India

price: check with company for price

2a 12vdc dpdt non-latching pcb signal relays - tx2-12v

features
• breakdown voltage between contacts and coil: 2, 000 v
• surge withstand between contacts and coil: 2, 500 v
• high contact capacity: 2 a 30 v dc
• surface-mount type available

application:-
communications & networking;
test & measurement;
security;
medical;
audio;
consumer electronics

description:-
manufacturer: panasonic
product category: low signal relays - pcb
rohs: rohs compliant by exemption compliant
brand: panasonic industrial devices
product: low profile relays
contact form: dpdt (2 form c)
contact current rating: 2 a
coil voltage: 12 v
maximum switching current: 2 a
coil current: 11.7 ma
coil type: non-latching
power consumption: 140 mw
isolation: 20 db at 1 ghz
insertion loss: 0.8 db at 1 ghz
contact rating: 2 a at 30 vdc
contact termination: solder pin
mounting style: through hole
packaging: tube
factory pack quantity: 40
