24vdc Power Relays - India

price: check with company for price

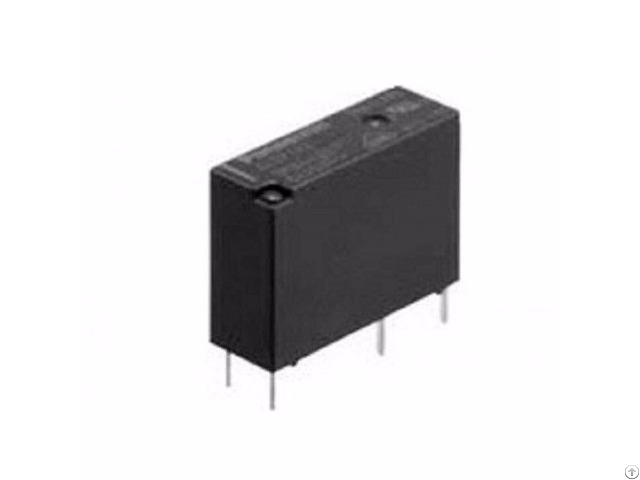

5A 24VDC SPST Slim 7.2mm Power Relays - ALDP124W

FEATURES
1. Nominal switching capacity:5A 277V AC
2. Ambient temperature:–40°C to +85°C –40°F to +185°F
3. Excellent heat resistance and tracking performance
4. Slim type: 20.5 (L) × 7.2 (W) × 15.3

APPLICATIONS
• Boilers
• Air conditioner
• Refrigerator
• Hot water units
• Microwave ovens
• Fan heaters

DESCRIPTION:-
Standard Package 100
Category Relays
Family Power Relays, Over 2 Amps
Series ALDP
Packaging Tray
Relay Type General Purpose
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 10ms
Features -
Mounting Type Through Hole
Termination Style PC Pin
Contact Material Silver Nickel (AgNi)
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Operating Temperature -40°C ~ 85°C
Online Catalog ALDP Series
