24vdc Pcb Power Relays G4a 1a E Dc24 - India

price: check with company for price

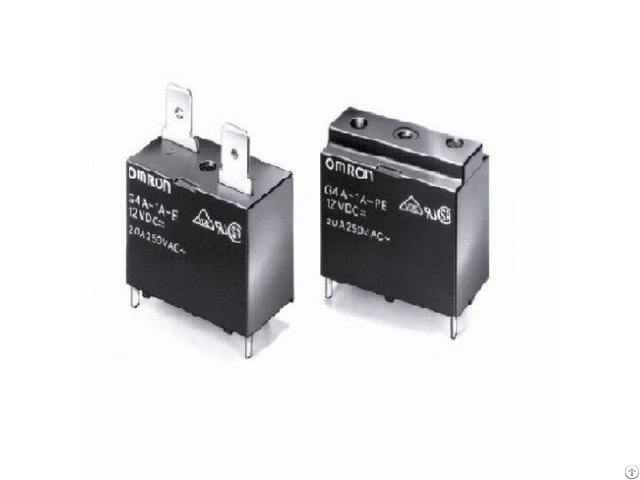

20A SPST (1 Form A) 24VDC & 80A Surge Current PCB Power Relays - G4A-1A-E-DC24

FEATURES:-
• A wide variety of single pole, double pole, high-capacity (16 A)
type and high-sensitivity type (250 mW) Relays are available.
• Low profile; 15.7 mm max. in height.
• Conforms to VDE (EN61810-1), UL508 and CSA22.2.
• IEC/EN 60335-1 conformed. (-HA Model)
• Satisfies ambient operating temperature requirement of 85°C
and 105°C (-CV Model).
• Clearance and creepage distance: 8 mm / 8 mm min.
• Coil insulation system: Class F (UL1446).


APPLICATION:-

• Home appliances
• OA equipments
• Industrial machinery

DESCRIPTION:-
Manufacturer: Omron
Product Category: General Purpose Relays
RoHS: RoHS Compliant
Coil Voltage: 24 VDC
Contact Form: SPST (1 Form A)
Contact Current Rating: 20 A
Mounting Style: Through Hole
Coil Resistance: 640 Ohms
Coil Current: 37.5 mA
Brand: Omron Electronics
Height: 23.5 mm
Length: 30.5 mm
Power Consumption: 900 mW
Series: G4A
Factory Pack Quantity: 50
Width: 16 mm

POPULAR PRODUCTS:-Omron G2RL Relay, Omron G5V relay, Omron G5LE Relay, Omron G5V-2 Relays, Power latch relay, Power magnetic relay, power monitering relay, power off relay, power on relay, Power pcb relay supplier, pcb cube relay, general purpose relay, Electronic pcb relay, electrical relays, power relay 16a, power relay 10a, 5vdc power relay, 5 pin power relay, 8 pin power relay etc.
