12vdc Pcb Power Relays Alq312 - India

price: check with company for price

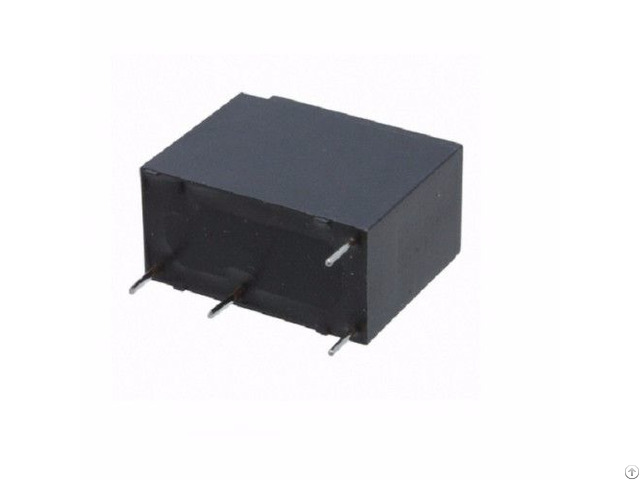

10A 12VDC SPST-NO PCB Power Relays - ALQ312

FEATURES
1. Miniature size and small: 10(W) × 20(L) × 16(H) mm .394(W) × .787(L) × 630(H) inch
2. Compact with high capacity: 1 Form A and 1 Form C, 10 A
3. Ambient temperature: –40°C to +85°C –40°F to 185°F
4. High surge voltage: 8, 000 V between contacts and coil
5. High breakdown voltage: 4, 000 V between contacts and coil

APPLICATIONS
1. Household appliances

DESCRIPTION:-
Standard Package 100
Category Relays
Family Power Relays, Over 2 Amps
Series ALQ
Packaging Tray
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 20ms
Release Time 20ms
Features Insulation - Class B
Mounting Type Through Hole
Termination Style PC Pin
Contact Material Silver Nickel (AgNi)
Coil Power 200 mW
Coil Resistance 720 Ohms
Operating Temperature -40°C ~ 85°C
Online Catalog ALQ Series

POPULAR PRODUCTS:- 16A PCB Power relays, SPST pcb relay, pcb power relay omron, g2r-1-e pcb power relays, dpdt pcb power relay 5a 24vdc coil, miniature pcb power relays, pcb mounted power relays, pcb power relay 30a, omron low power consumption relay,


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad, haryana, India

  • Email: Email


Published date: November 11, 2016 -
