12vdc Pcb Power Relay Jw2asn Dc12v - India

price: check with company for price

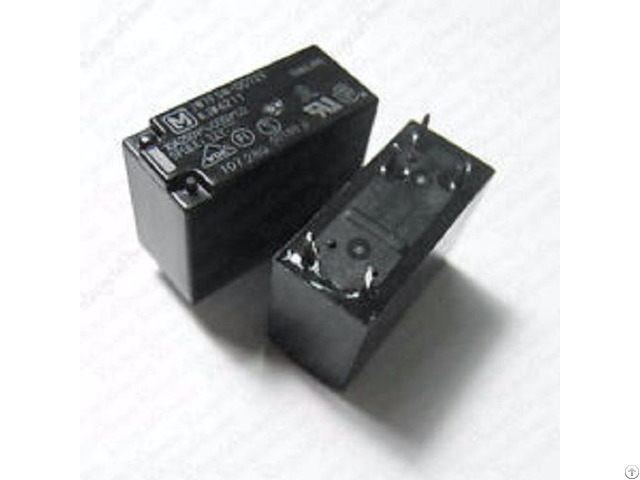

5a 12vdc dpst-no non-latching pcb power relay- jw2asn-dc12v

features:-
• miniature package with universal terminal footprint
• high dielectric withstanding for transient protection: 10, 000 v surge in μs between coil and contact
• sealed construction
• class b coil insulation types available
• tv rated (tv-5) types available (only for 1 form a type)
• vde, tÜv, semko, sev, fimko, tv-5 also approved
• sockets are available.

applications:-
1. home appliances

2. office machines

3. industrial equipment

description:-

manufacturer: panasonic
product category: general purpose relays
rohs: rohs compliant by exemption
brand: panasonic industrial devices
contact termination: solder pin
mounting style: through hole
contact form: dpst (2 form a)
coil voltage: 12 v
coil termination: solder pin
coil type: non-latching
coil resistance: 270 ohms
coil current: 44 ma
contact material: silver tin oxide
packaging: bulk
power consumption: 530 mw
factory pack quantity: 100
