12vdc Panasonic Coil Latching Part # Adzs22112m01 - India

price: contact company for price

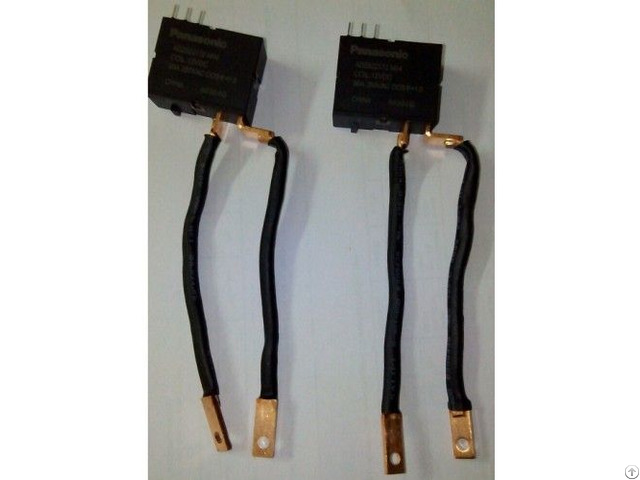

90A Latching Relay 2 Coil Latching 12VDC PANASONIC PART #- ADZS22112M01

FEATURES:-

1. Inrush current 100A type available

2. IEC60335-1* compliant, PTI 325V (VDE approved) type available

3. Surge breakdown voltage (between contact and coil): 12, 000 V

4. Breakdown voltage (between contact and coil): 5, 000 V

5. Reflow possible (pin-in-paste)

6. Creepage distance and clearances between contact and coil: 6 mm .236 inch

APPLICATIONS:-

1. Smart meters

2. Industrial equipment

3. Security equipment

4. Home appliances

5. Various power supplies

6. Lighting

DESCRIPTION:-

Technical Details

Arrangement : 1a

Contact Material : AgSnO2, alloy

Contact Voltage drop (initial) : Max. 0.09V (at 90A), Max. 0.05V (at 10A)

Max. Switching power (resistive) : 22, 500VA

Max Switching voltage : 276VAC

Max Switching Current : 90A (AC)

Contact Rating : 90A 250VAC

Min. Switching Capacity : 100mA 150VAC (reference value)



POPULAR PRODUCTS:-
90A Latching Relay, oil Latching 12VDC
