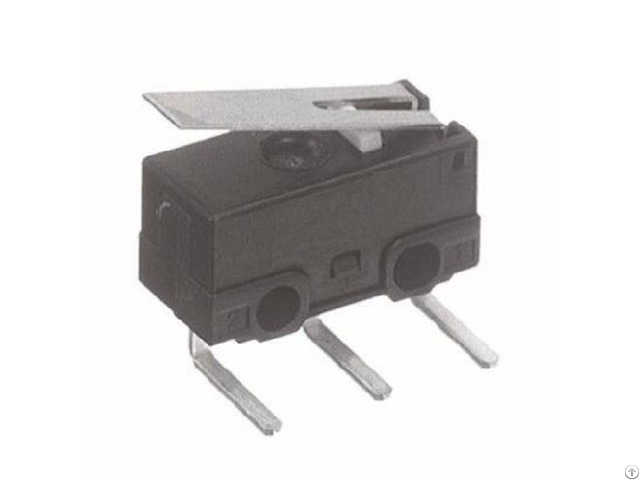

100MA 125V Basic / Snap Action Switches SPDT Hinge LVR PCB - AH1762619-A

FEATURES
1. Self-standing PC board terminal type available
2. Flat terminal shape—makes soldering easy
3. Low-level circuit type available
4. Integrally molded terminal block—prevents soldering flux from entering into housing
5. Compact size —minimizes size of equipment

APPLICATIONS
1. Computer mouse
2. Charger unit for mobile phone
3. Detection of key position for automobiles


DESCRIPTION:-

Circuit SPDT
Switch Function On-Mom
Current Rating 100mA (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Lever, Straight
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection -
Features -
Operating Force, Torque 50gf
Release Force 5gf
Pretravel 0.083" (2.1mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Operating Position 0.268" (6.8mm)
Mechanical Life 500, 000 Cycles
Electrical Life 100, 000 Cycles
Operating Temperature -25°C ~ 85°C
