Dashboard Training Panel - China

i.

About The Product

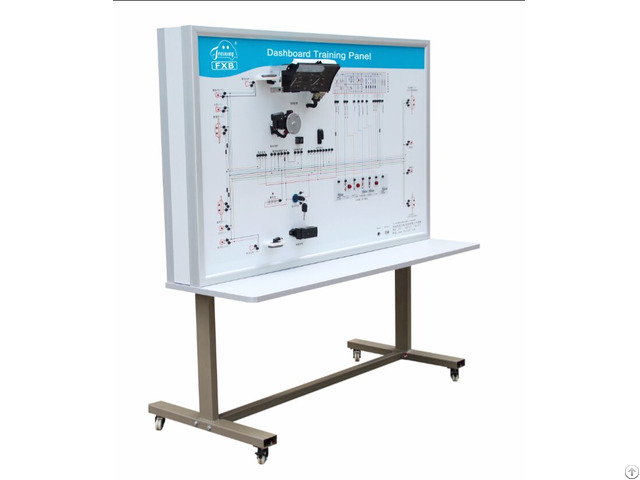

The device is designed based on the Passat B5 meter system to holistically demonstrate the structure and operation of the meter system.

The device applies to theoretical teaching and maintenance training of the meter system in secondary and senior vocational skill schools, normal education and training institutions.

ii.

Features

1 - A real and operable electronic meter system is used to illustrate the structure of the system.

2 - Various sensors and switches connecting to the meter system can be operated to simulate operation of the signal source.

In this way, the device demonstrates operation of the meter system.

3 - The training panel is made of advanced aluminum-plastic plate with characteristics of not less than 4mm thick, corrosion resistance, impact resistance, pollution resistance, fireproof, and moistureproof.

Its surface are processed by special craft and spraying primer.

Never fade color circuit diagram and working principal diagram are painted on the board whose surface coating with varnish.

The trainees can learn and analyze the working principle of the control system by referencing the diagram and the real object.

4 - The training panel is installed with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components of the electronic meter system.

5 - The training panel's base frame is made of steel and the surface is paint-coated.

Self-retention wheels are installed and a 24 0cm tabletop is fixed on the base frame to place materials and light testing devices.

6 - Instead of using accumulators and requiring charging, the training panel connects to a 220V AC voltage which changes to a 12V DC voltage through the internal circuit.

The 12V DC voltage protects the training panel against short circuit.

7 - Equipped with intelligent fault setting and appraisal system, include fault setting, troubleshooting and assessment functions etc.

iii.

Basic Parameter

1 - Size: 1600mm × 700mm × 1700mm (length x width x height)

2 - External power supply: A.C. 220V ± 10% 50Hz

3 - Operating voltage: 12V DC

4 - Operating temperature: -40℃ to +50℃
