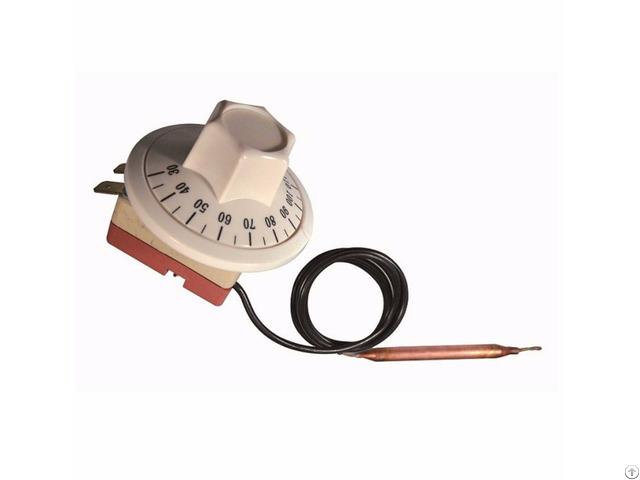

Wy C Series High Temperature Adjustable Manual Reset Capillary Tube Type Thermostat - Taiwan

Adjustable capillary thermostat.

Expansive Temperature Controller for Electric Water Heater, Washer, Electric Oven, Deep Fryer, Water Boiler etc.

Diameter for bulb sensor - between 3~10mm

Standard: 3mm for stainless steel sensor

5mm for copper sensor

Capillary length: min.

300mm

* Below temperature calibration is for reference, which should submit to genuine drawing and production.

Operation Temperature (°C) Max Temp of Capillary Fill

Type High Temp Low Temp Switch form Sensor tube in

OFF DIFF OFF DIFF (°C) length(mm)

WY30A-C 30 ± 4 5 ± 3 -30 ± 4 5 ± 3 SPDT 80 800 Liquid

WY75B-C 75 ± 4 5 ± 4 30 ± 5 5 ± 4 SPST 120 500 Liquid

WY120C-C 120 ± 5 6 ± 4 30 ± 6 6 ± 4 SPDT 150 1100 Liquid

WY190B-C 190 ± 6 8 ± 4 30 ± 8 8 ± 4 SPST 250 400 Liquid

WY250B-C 250 ± 10 10 ± 5 30 ± 12 10 ± 5 SPDT 300 900 Liquid

WY320A-C 320 ± 12 10 ± 8 60 ± 15 10 ± 8 SPDT 400 800 Liquid
