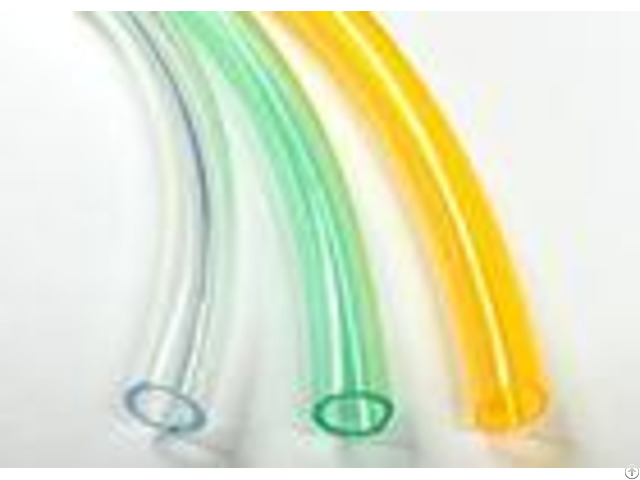

Non Toxic Clear Pvc Tubing Flexible Unreinforced Water Level Hose Tube - China

non-toxic flexible pvc clear unreinforced water level hose / tube - - - - Inner Diameter | 3mm-50mm | Color | Clear, Blue, Orange, Yellow, Red | Quality Grade | Food Grade, No Toxic Grade, No Smell Grade | Connection | Camlock, KC Nipple, Hose Mender, Bauer, Storz, Pin Lug | Transporting Medium | Water, Oil, Air | Application | Factory, Construction, Farm And Family | - - - - PVC Tube is also PVC clear hose, PVC water level hose, PVC transparent hose, PVC clear tube, vinyl tubing, PVC single layer hose, clear unreinforced hose, etc.

Which is designed for low pressure delivery in multiple applications.

There are two types about pvc tube, one is common and non-toxic hose used in the factory, farm, ship etc.

another is pvc food grade tube made of top grade pvc, free of phthalate and heavy metal elements, mainly used for conveying wine, beer, jam and other food.

Application: 1 - Suitable for low pressure transfer of various fluids and air, such as fuel, water, light chemicals, oxygen, gas for watering systems, peristaltic pumps, electrical and thermal insulation, analytical systems in plant equipment, laboratories, watering system and many other low pressure industry applications.

2 - The product is used for conveying water, oil, gas under normal working condition in factories, farm, ship, building and family.

3 - the food grade tube can be used for conveying beverage, wine, beer, jam and other food.

It is suitable for drinking water, the twin-tube is specially used for milk conveying.

It can be used for conveying strong distilled liquor.

Features: 1 - Light, soft, elastic, non-toxic, odorless and Choosing the best raw material, we guarantee the high quality of our PVC clear hose.

2 - Non-toxic and odorless, it is environment friendly.

3 - clear PVC wall allows full visual flow of materials, smooth tube for resistance to collection or blockage, easily characterized by a round, rectangular or square shape, 4 - different sizes to fit standard commercial barbed fittings, we can also make the hose with non-phthalate formulations.

5 - Resistance to abrasion, corrosion and heat; Lightweight, toughness, durability and long service life.

6 - Glass-like clarity with mirror-smooth surfaces provides outstanding flow characteristics.

7 - The PVC hose is flexible, durable for hard weather and temperature, chemical resistance, 8 - The high grade type can transport food, milk, drink, wine, etc.

9 - bright outlook, we can do different colors according to customers' request.

It also can add colorful symbol lines on the surface of the hose, making it look more beautiful.

10 - Working Temperature: -5C-65C, we can do high-temperature resistant grade and low -temperature resistant grade.

Specification: - - - - Inner Diameter | Outer Diameter | Weight | W.P.(at 23) | Std Length | inch | mm | inch | mm | kg/m | bar | psi | m | ft | 1/8 | 3 | 0.196 | 5 | 0.017 | 4 | 60 | 100 | 300 | 1/6 | 4 | 0.236 | 6 | 0.02 | 4 | 60 | 100 | 300 | 1/5 | 5 | 0.314 | 8 | 0.04 | 4 | 60 | 100 | 300 | 1/4 | 6 | 0.354 | 9 | 0.047 | 4 | 60 | 100 | 300 | 5/16 | 8 | 0.433 | 11 | 0.059 | 4 | 60 | 100 | 300 | 3/8 | 10 | 0.511 | 13 | 0.071 | 4 | 60 | 100 | 300 | 1/2 | 12 | 0.590 | 15 | 0.08 | 3 | 45 | 100 | 300 | 5/8 | 15 | 0.708 | 18 | 0.10 | 3 | 45 | 50 | 150 | 3/4 | 19 | 0.866 | 22 | 0.13 | 3 | 45 | 50 | 150 | 1 | 25 | 1.181 | 30 | 0.28 | 2 | 30 | 50 | 150 | 1-1/4 | 32 | 1.496 | 38 | 0.43 | 2 | 30 | 30 | 90 | 1-1/2 | 38 | 1.732 | 44 | 0.52 | 2 | 30 | 30 | 90 | 2 | 50 | 2.283 | 58 | 0.90 | 2 | 30 | 30 | 90 | - - - -
